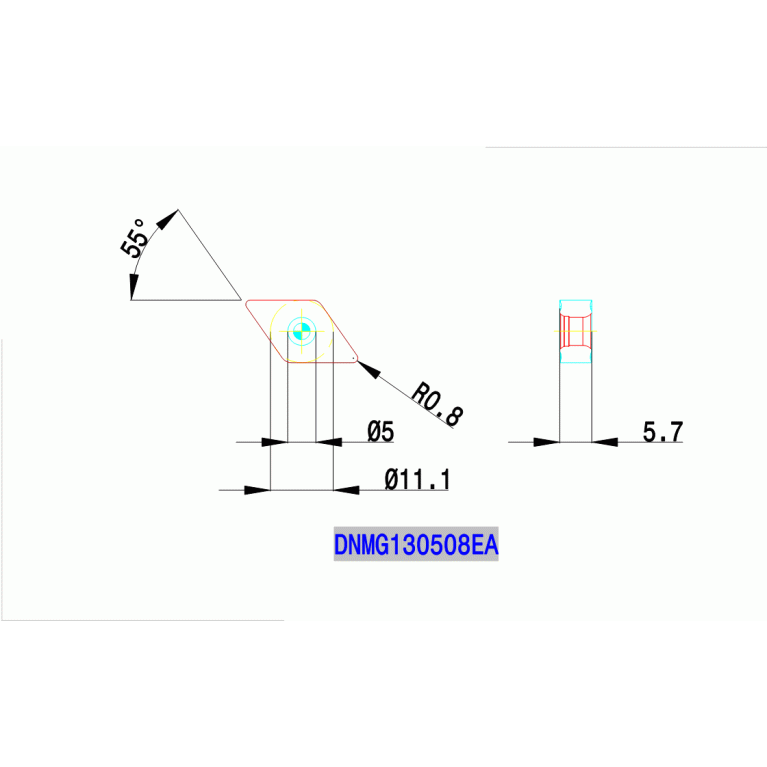

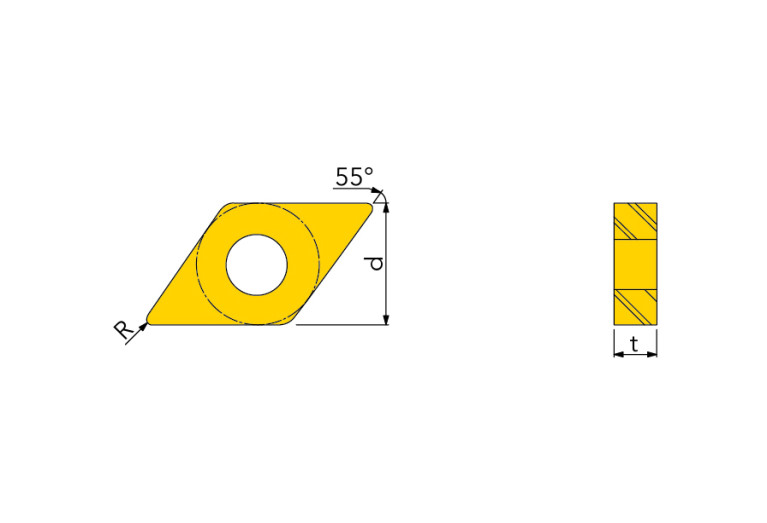

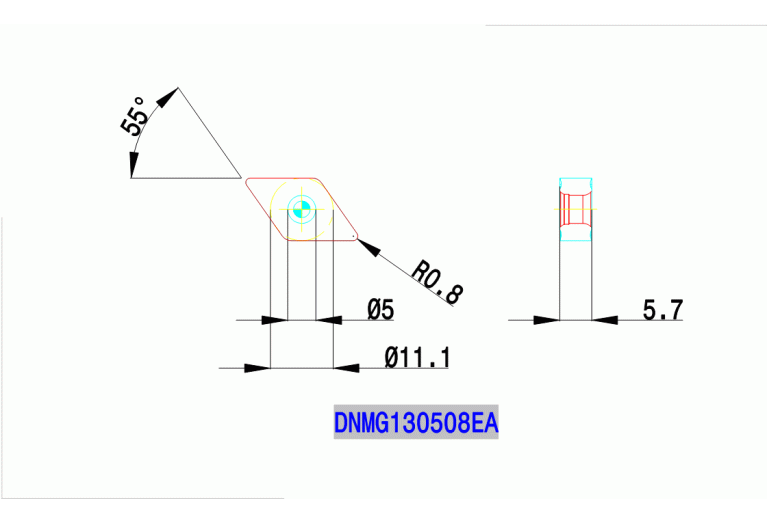

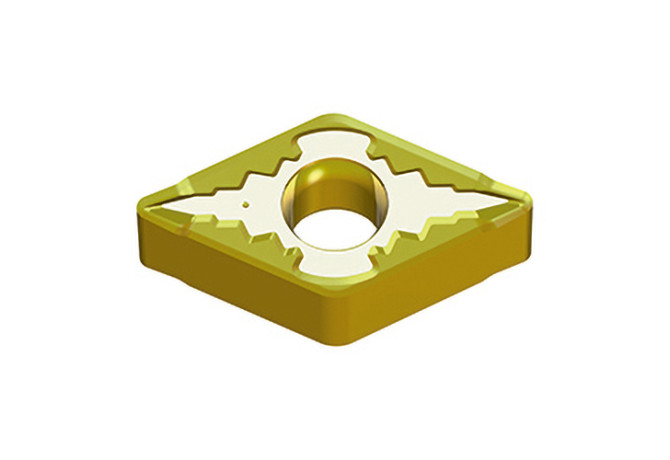

DNMG 130508 EA TT9235

Артикул: 6118481

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

DN1305082N

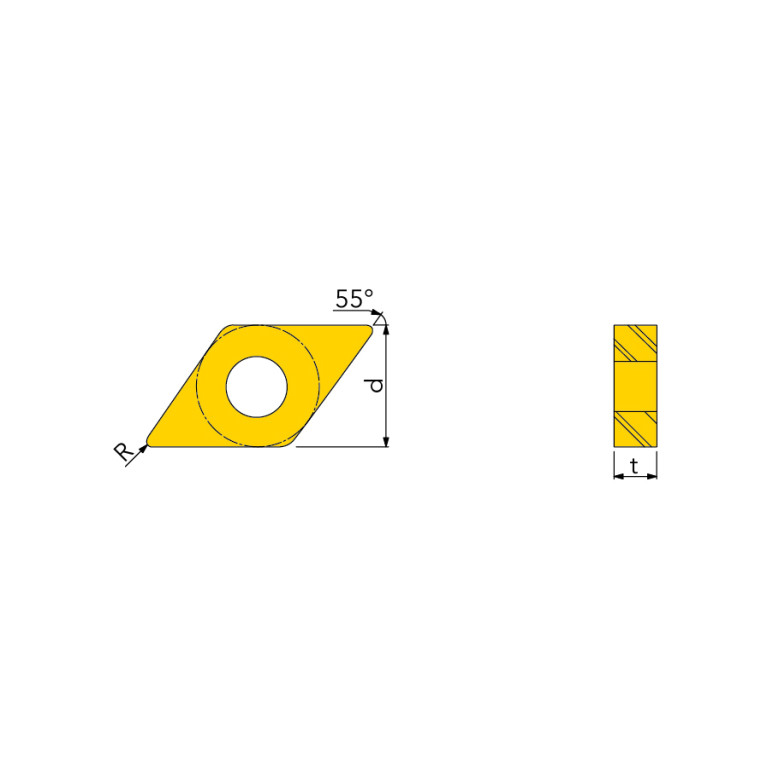

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negative 55° rhombic inserts for finishing / stainless steel & exotic material

GRD2ND Standard designation of the grade 2nd application

M25-M40

GRD3RD Standard designation of the grade 3rd application

S25-S40

GRDMFG Grade manufacturers designation

TT9235

IC Inscribed circle diameter

11.11 mm

ID Technical product number

6118481

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN1305082N

Name Identifying order number

DNMG 130508 EA TT9235

RE Corner radius

0.8 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

DNMG130508

TCINS Tolerance class insert

Working process

No working processes available
