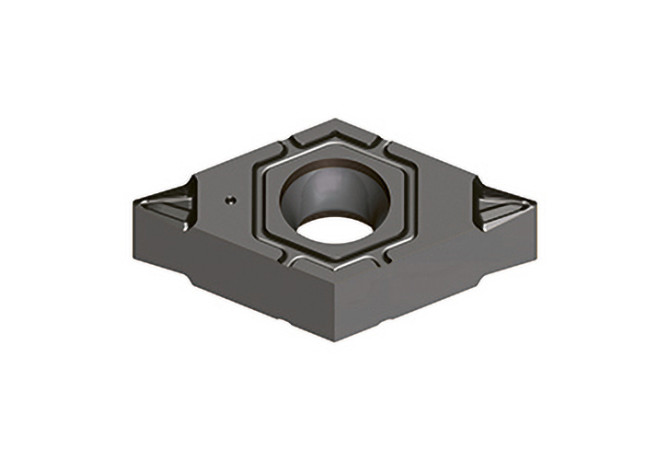

DNGX 080302M SM-F TT9020

Артикул: 6335247

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

DN0803027N

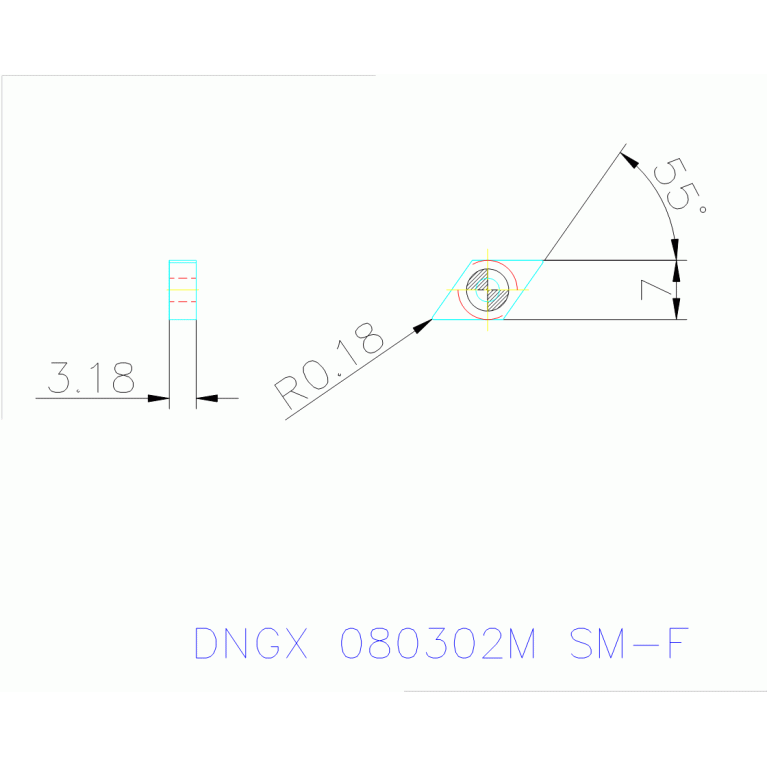

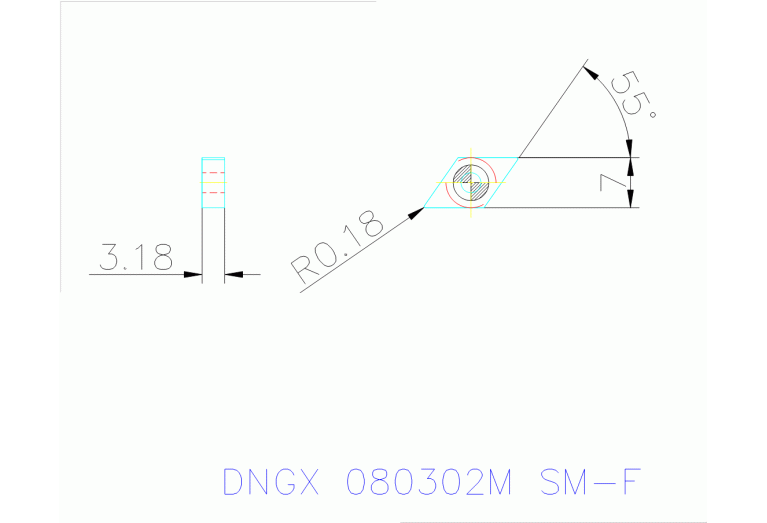

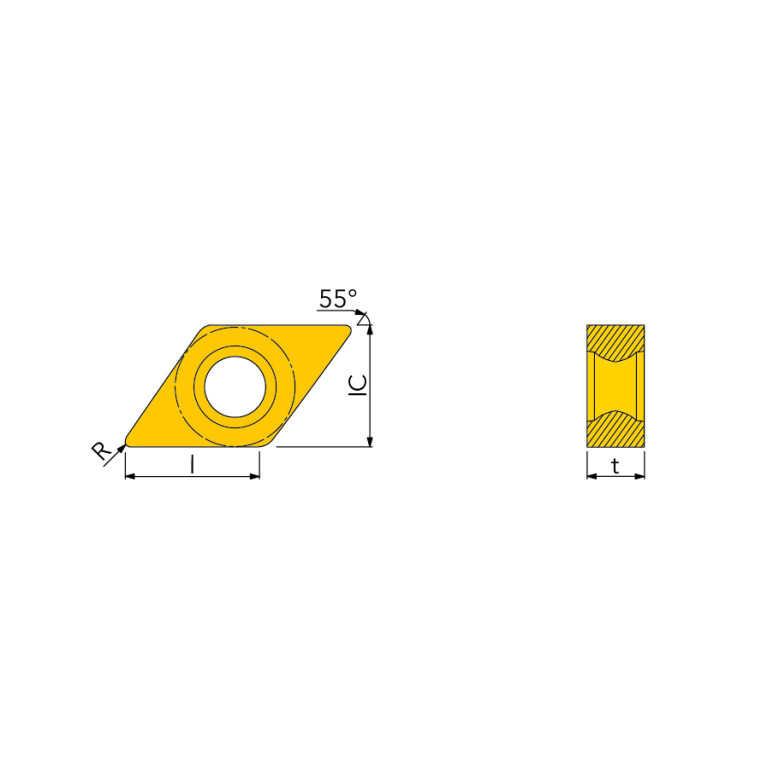

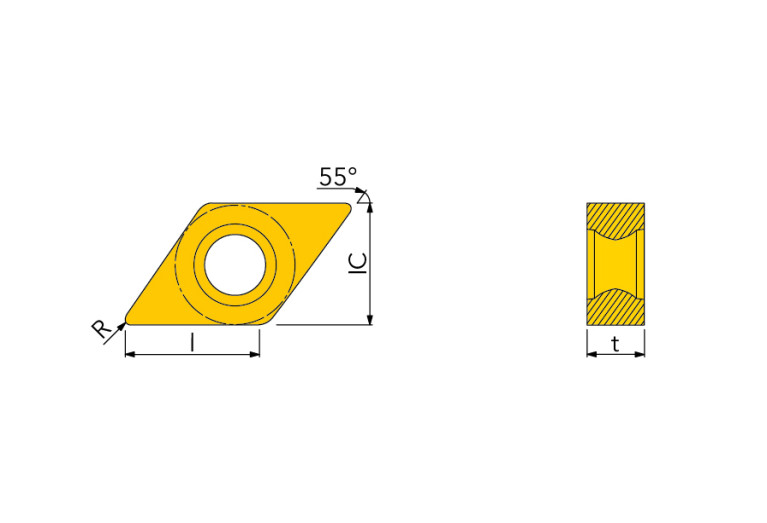

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Negativ 55° Insert for finish machining

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRDMFG Grade manufacturers designation

TT9020

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

7 mm

ID Technical product number

6335247

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

0.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DN0803027N

Name Identifying order number

DNGX 080302M SM-F TT9020

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

DNGX080302M

TCINS Tolerance class insert

Working process

No working processes available
