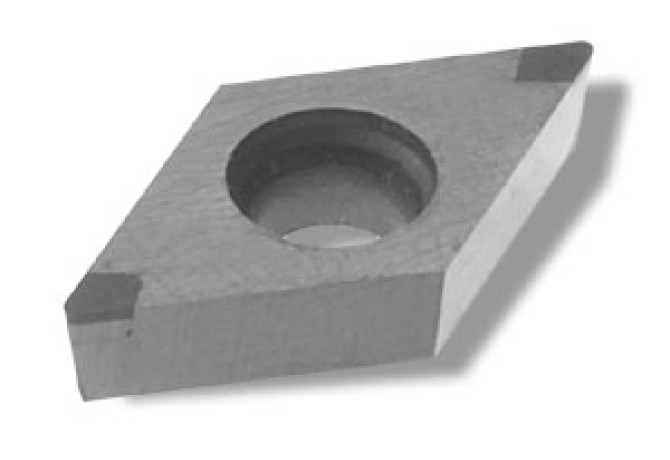

DCMX 11T308SN TA201

Артикул: DCMX 11T308SN TA201

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

DC11T3083N

EPSR Insert included angle

55 Degree

FamilyProducts

CBN turning insert

GRDMFG Grade manufacturers designation

TA201

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3083N

Name Identifying order number

DCMX 11T308SN TA201

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCMX11T308SN

STDDESAnsi Standard designation ANSI

DCMX32.52SN

TCINS Tolerance class insert

Working process

No working processes available
