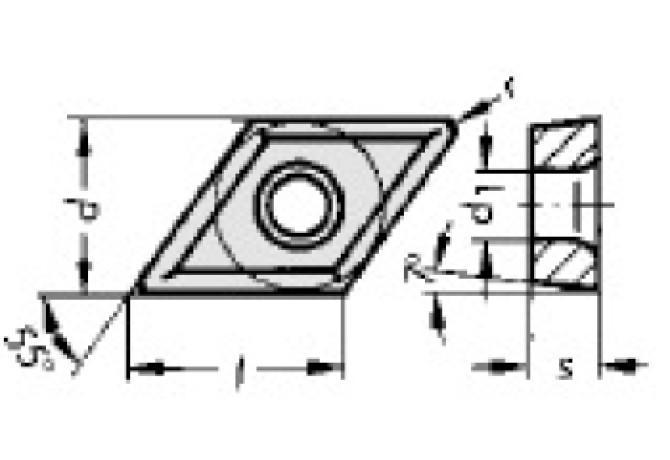

DCMW150408 TN5120

Артикул: 122235624

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

6/16/2013

DIN

DC1504083N

EPSR Insert included angle

55 Degree

FamilyProducts

indexable insert DCM, single sided

GRDMFG Grade manufacturers designation

TN5120

IC Inscribed circle diameter

12.7 mm

ID Technical product number

122235624

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC1504083N

Materials

Name Identifying order number

DCMW150408 TN5120

NameAnsi Identifying order number inch alternative

DCMW432 TN5120

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

DCMW150408

STDDESAnsi Standard designation ANSI

DCMW432

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
