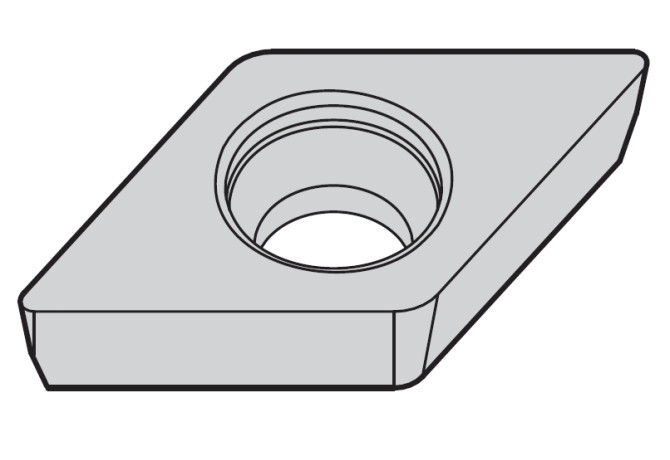

DCMW11T304 WK05CT

Артикул: 4170472

В наличии

В корзину

Описание

Характеристики

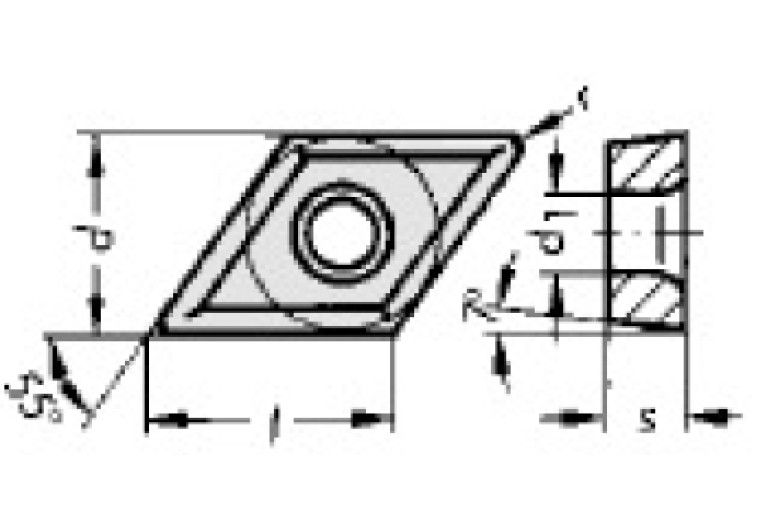

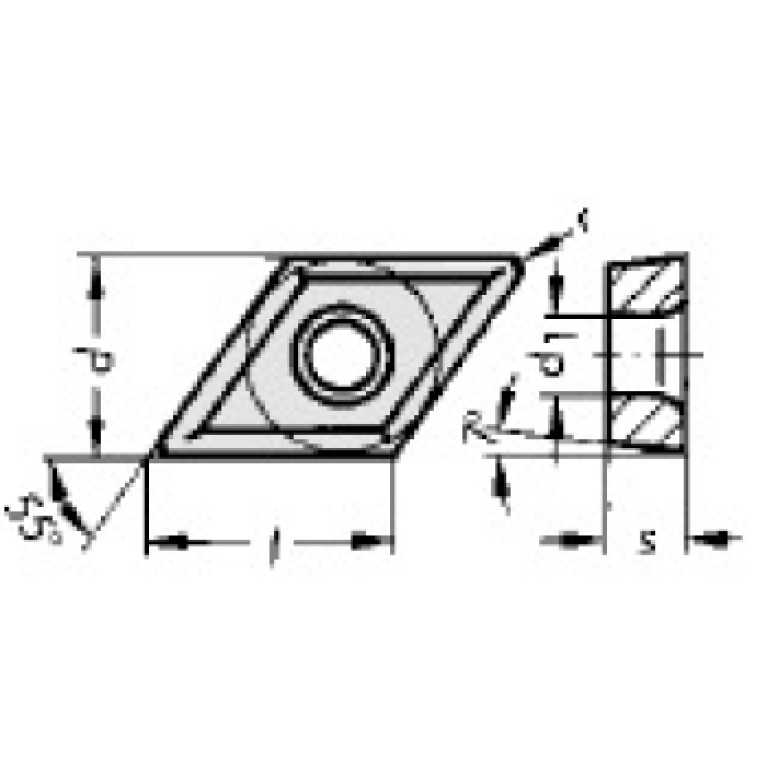

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/5/2012

DIN

DC11T3043N

EPSR Insert included angle

55 Degree

FamilyProducts

indexable insert for turning, positive, DCMW

GRDMFG Grade manufacturers designation

WK05CT

IC Inscribed circle diameter

9.53 mm

ID Technical product number

4170472

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.63 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3043N

Materials

Name Identifying order number

DCMW11T304 WK05CT

NameAnsi Identifying order number inch alternative

DCMW3251 WK05CT

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCMW11T304

STDDESAnsi Standard designation ANSI

DCMW3251

TCINS Tolerance class insert

Working process

No working processes available
