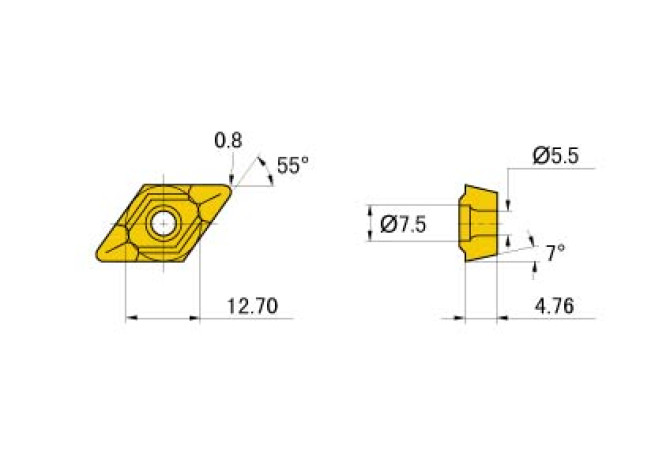

DCMT150408 UE6035

Артикул: DCMT150408 UE6035

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

DC1504083N

EPSR Insert included angle

55 Degree

FamilyProducts

insert for turning DCMT

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDMFG Grade manufacturers designation

UE6035

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

DCMT150408 UE6035

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC1504083N

Materials

Name Identifying order number

DCMT150408 UE6035

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

DCMT150408

STDDESAnsi Standard designation ANSI

DCMT432

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.013 kg
