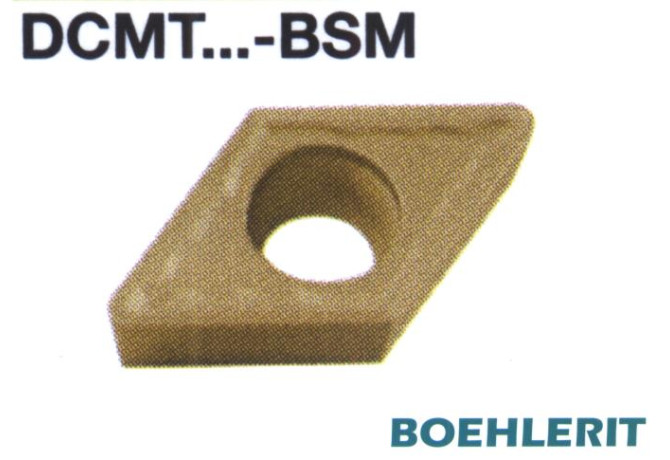

DCMT070204-BSM LC225C

Артикул: 6400189

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BSM

COATN Coating / Покрытие

MT-Al2O3

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

2/1/2009

DIN

DC0702 3N

EPSR Insert included angle

55 Degree

FamilyProducts

55° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

LC225C

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6400189

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702 3N

Name Identifying order number

DCMT070204-BSM LC225C

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

DCMT070204

STDDESAnsi Standard designation ANSI

DCMT2(1.5)1

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
