DCMT070202-F1 CMP

Артикул: 02424240

В наличии

В корзину

Описание

Характеристики

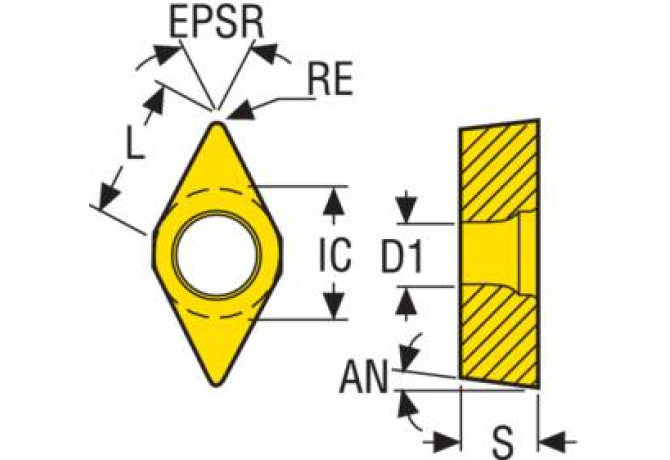

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

DIN

DC0702023N

EPSR Insert included angle

55 Degree

FamilyProducts

DCMT070202-F1 CMP

GRDMFG Grade manufacturers designation

CMP

ID Technical product number

02424240

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702023N

MIID Master insert identification

DCMT070202 CMP

Name Identifying order number

DCMT070202-F1 CMP

NameAnsi Identifying order number inch alternative

DCMT21.50.5-F1 CMP

RE Corner radius

0.2 mm

STDDES Standard designation

DCMT070202

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
