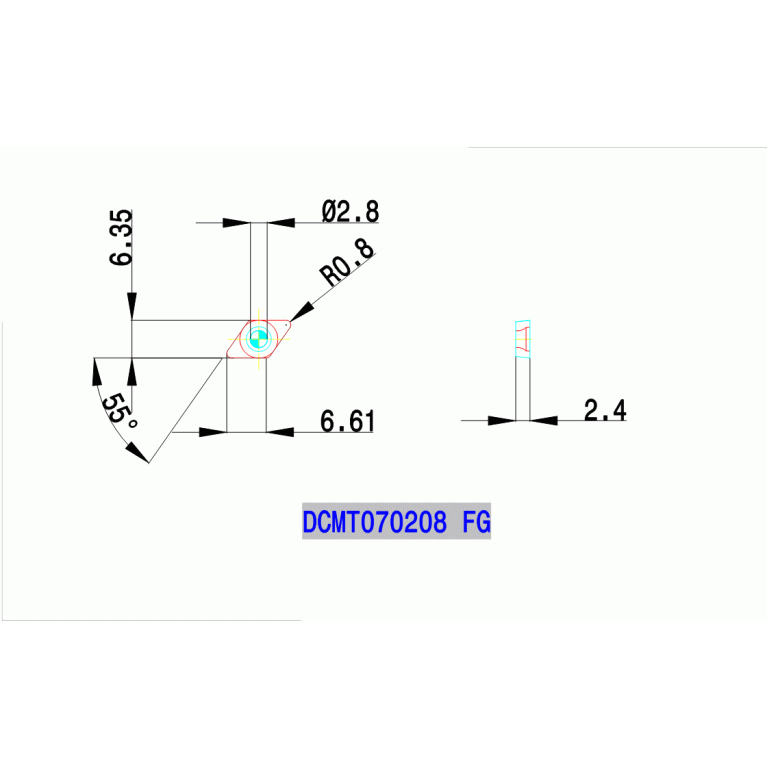

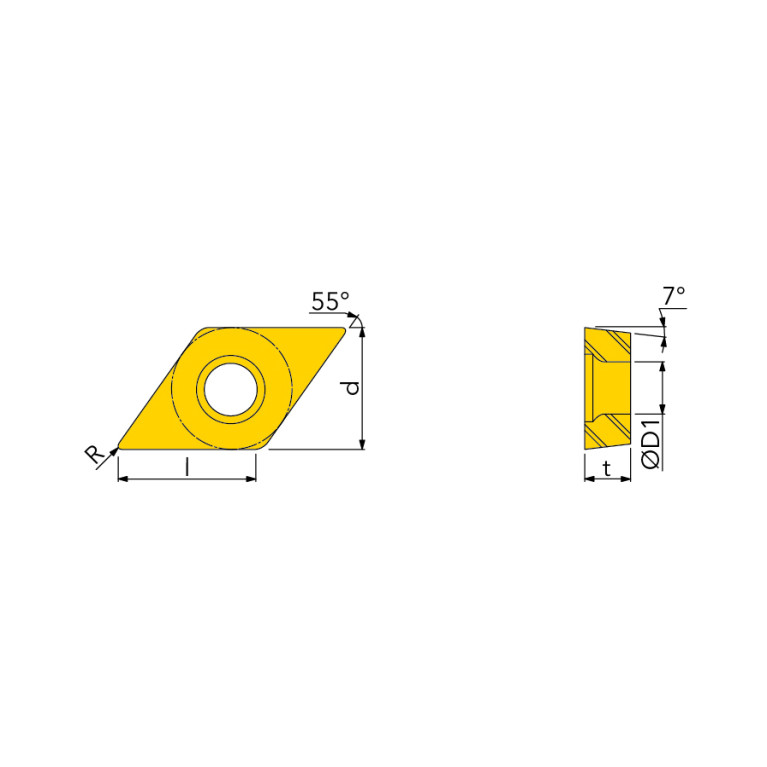

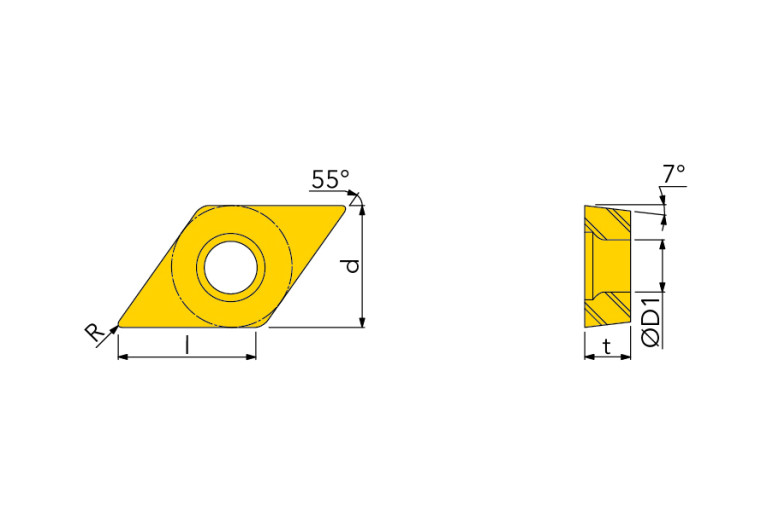

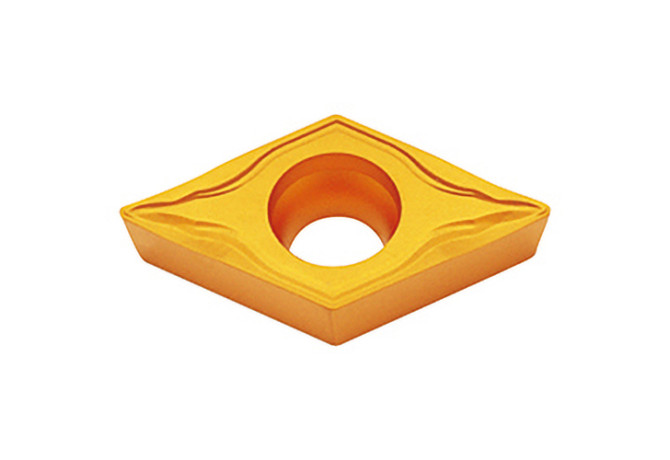

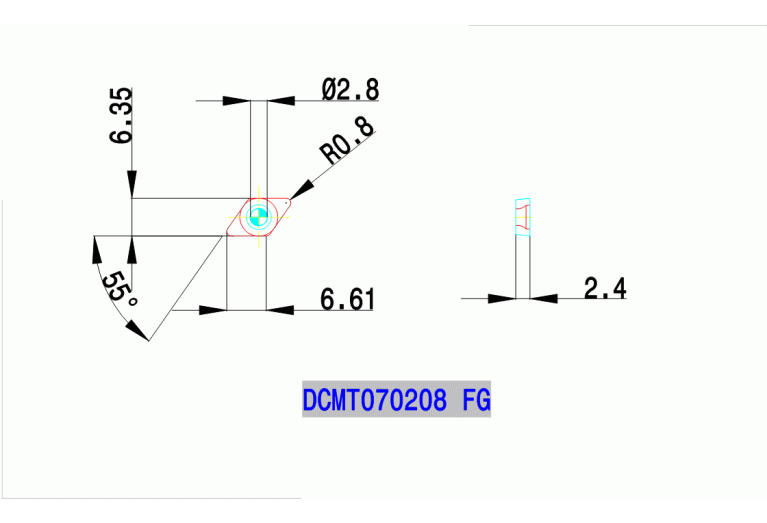

DCMT 070208 FG PV3010

Артикул: 5517934

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

DC0702083N

EPSR Insert included angle

55 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance 55° rhombic inserts for finishing

GRD2ND Standard designation of the grade 2nd application

M05-M20

GRD3RD Standard designation of the grade 3rd application

K05-K20

GRDMFG Grade manufacturers designation

PV3010

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5517934

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7 mm

LE Cutting edge effective length

0.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702083N

MIID Master insert identification

DCMT070208 PV3010

Name Identifying order number

DCMT 070208 FG PV3010

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

DCMT070208

STDDESAnsi Standard designation ANSI

DCMT21.52

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
