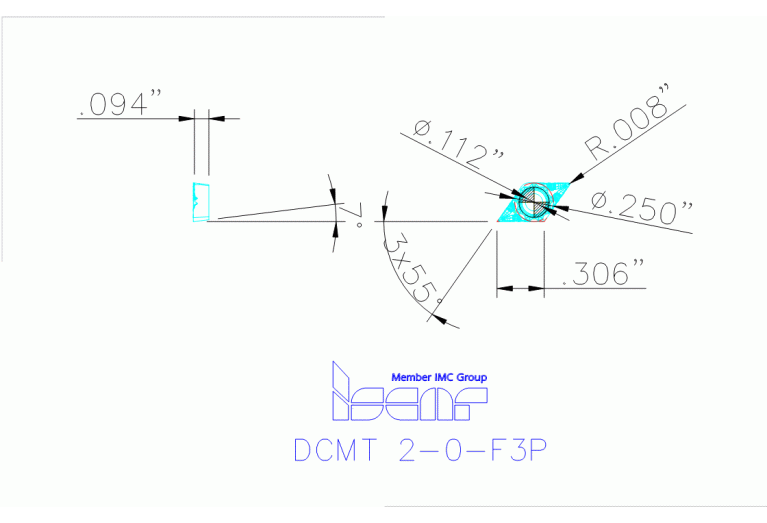

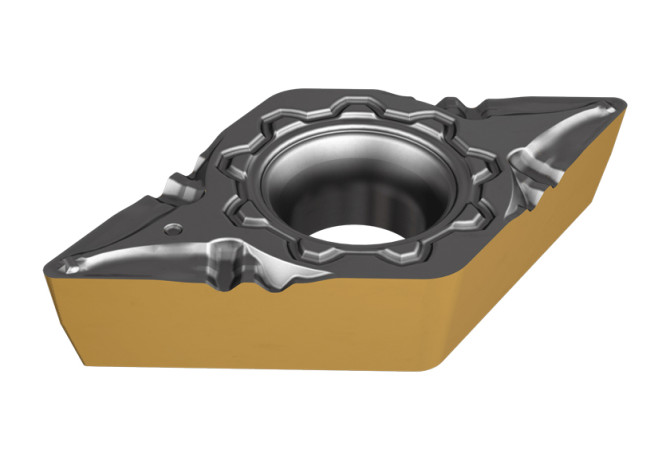

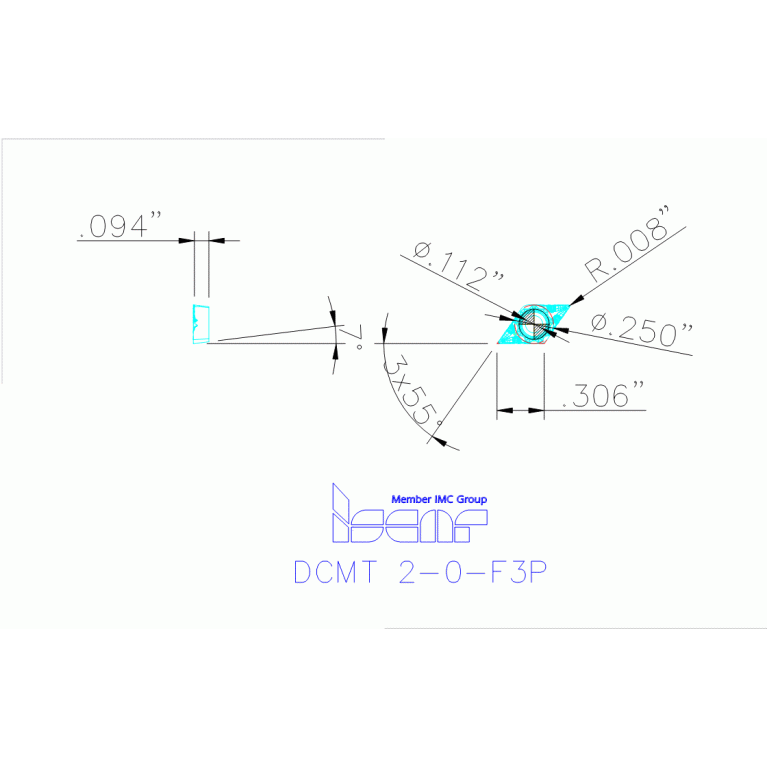

DCMT 070202-F3P IC807

Артикул: 3320675

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

F3P

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

DC0702023N

EPSR Insert included angle

55 Degree

FamilyProducts

55° Rhombic Inserts with a Positive Flank for Semi-Finishing and Finish Turning on Steel

GRDMFG Grade manufacturers designation

IC807

IC Inscribed circle diameter

6.35 mm

ID Technical product number

3320675

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$DC0702023NB$$02

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.7 mm

LOC-03 ISO

ISO$DC0702023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702023N

Name Identifying order number

DCMT 070202-F3P IC807

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
