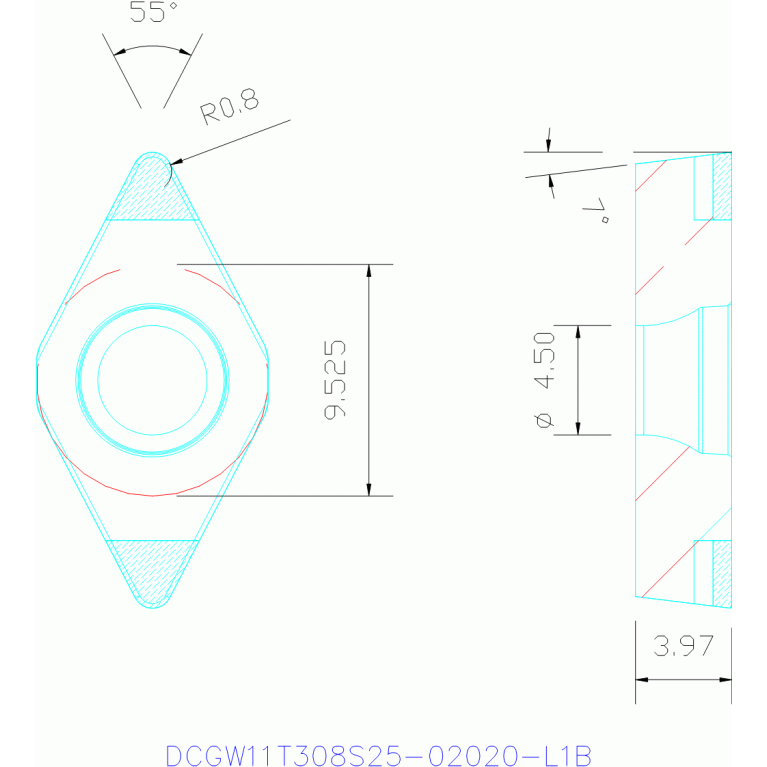

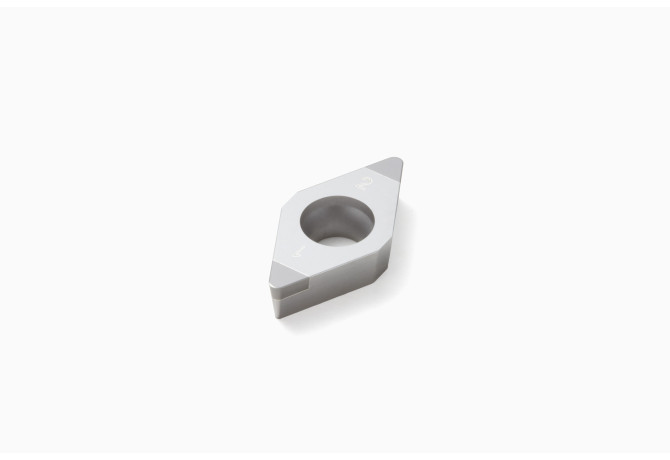

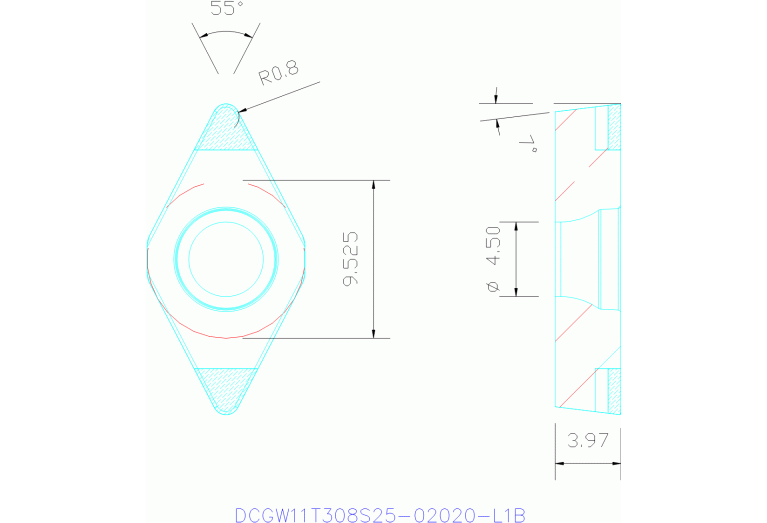

DCGW11T308S25-02020-L1B CBN200

Артикул: 02629214

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

DC11T3083N

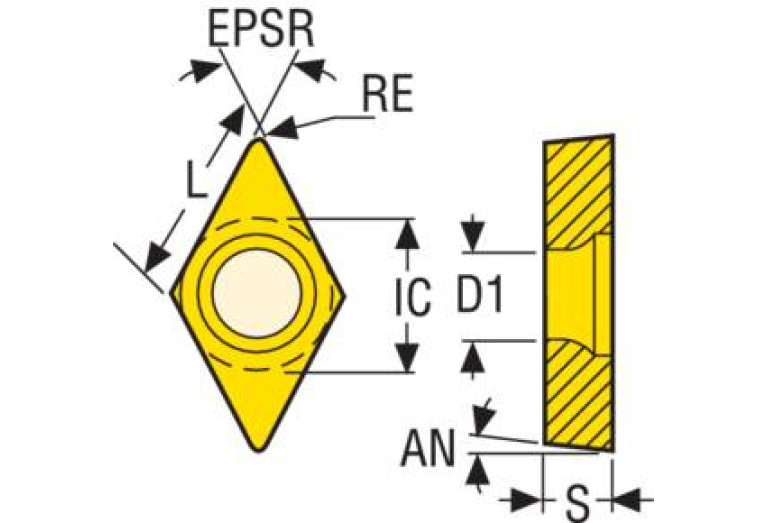

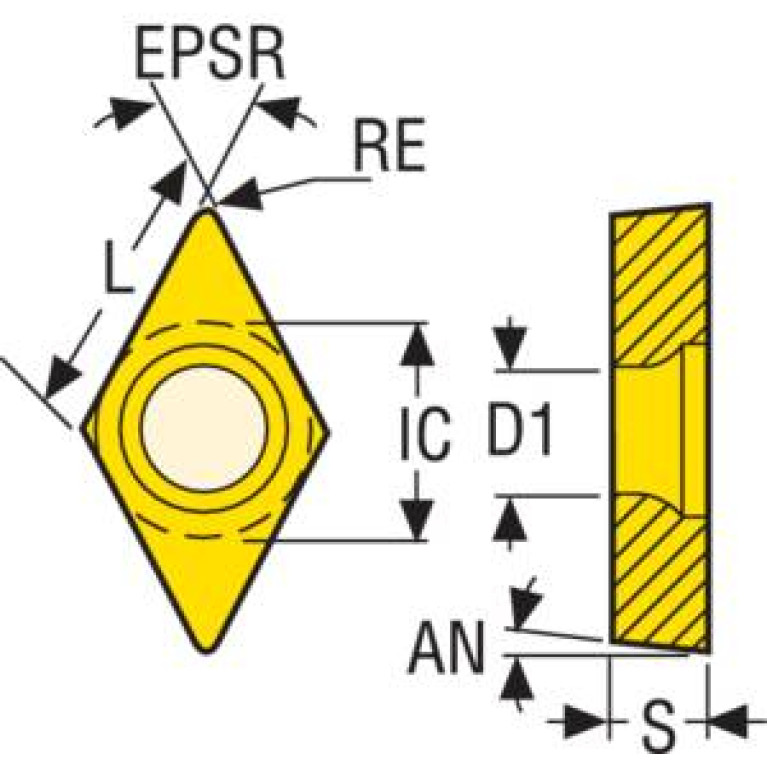

EPSR Insert included angle

55 Degree

FamilyProducts

DCGW11T308S25-02020-L1B CBN200

GRDMFG Grade manufacturers designation

CBN200

IC Inscribed circle diameter

9.525 mm

ID Technical product number

02629214

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$DC11T3083NA$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LE Cutting edge effective length

3.5 mm

LOC-03 ISO

ISO$DC11T3083NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3083N

MIID Master insert identification

DCGW11T308S25 CBN200

Name Identifying order number

DCGW11T308S25-02020-L1B CBN200

NameAnsi Identifying order number inch alternative

DCGW32.52S25-00820-L1-B CBN200

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGW11T308S25

STDDESAnsi Standard designation ANSI

DCGW32.52S25

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
