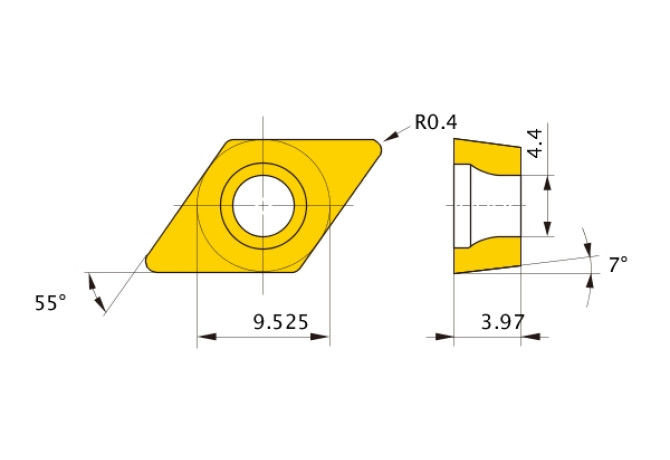

DCGT11T304R-F AP25N

Артикул: DCGT11T304R-F AP25N

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

DC11T3043R

EPSR Insert included angle

55 Degree

FamilyProducts

insert for turning DCGT-RL-F

GAN Insert rake angle

17 Degree

GRD2ND Standard designation of the grade 2nd application

CC-K10

GRD3RD Standard designation of the grade 3rd application

CC-K20

GRDMFG Grade manufacturers designation

AP25N

GRDPRIO Standard designation of the grade main application

CC-P01

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.62 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3043R

Name Identifying order number

DCGT11T304R-F AP25N

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGT11T304R

STDDESAnsi Standard designation ANSI

DCGT32.51R

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
