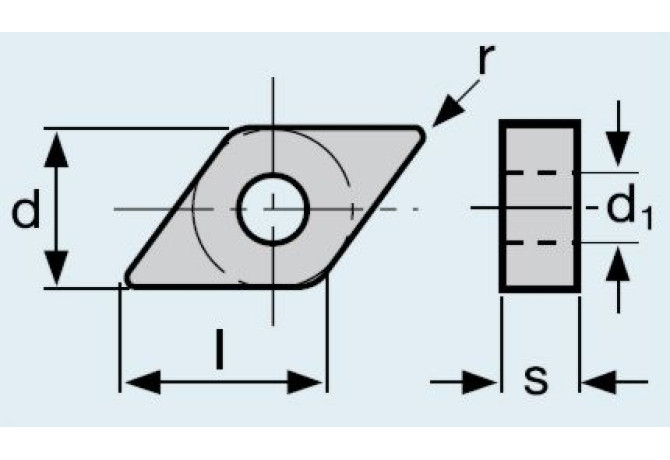

DCGT11T3015 LC415X

Артикул: DCGT11T3015 LC415X

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/18/2010

DIN

DC11T3 3N

EPSR Insert included angle

55 Degree

FamilyProducts

55° indexable insert, sharp edge

GRDMFG Grade manufacturers designation

LC415X

GRDPRIO Standard designation of the grade main application

HC-S15

IC Inscribed circle diameter

9.52 mm

ID Technical product number

DCGT11T3015 LC415X

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3 3N

Materials

P,M,N,S

Name Identifying order number

DCGT11T3015 LC415X

RE Corner radius

0.15 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCGT11T3015

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
