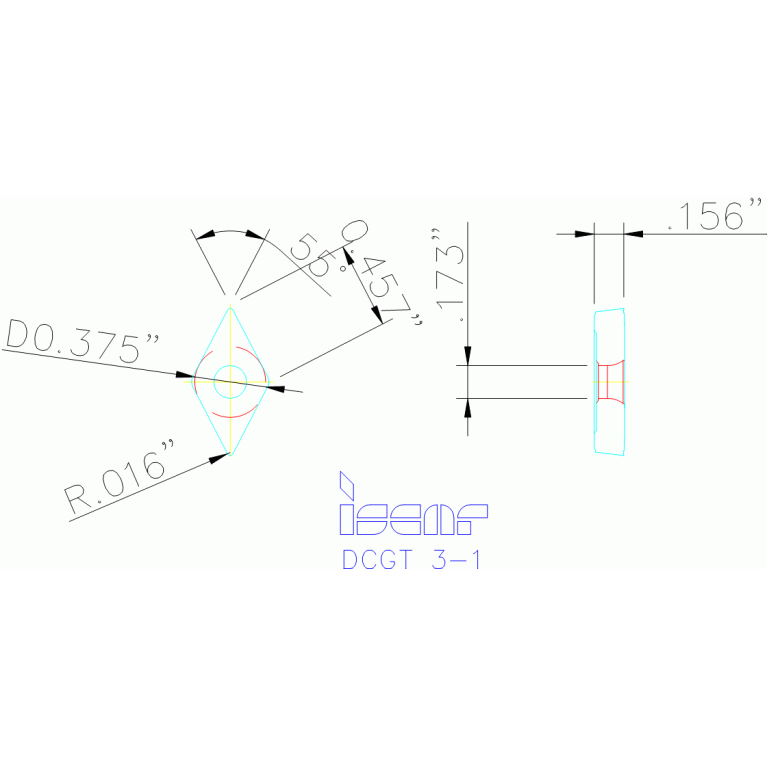

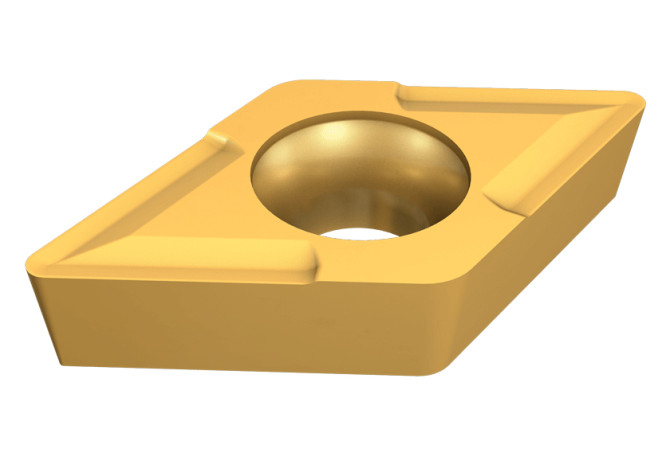

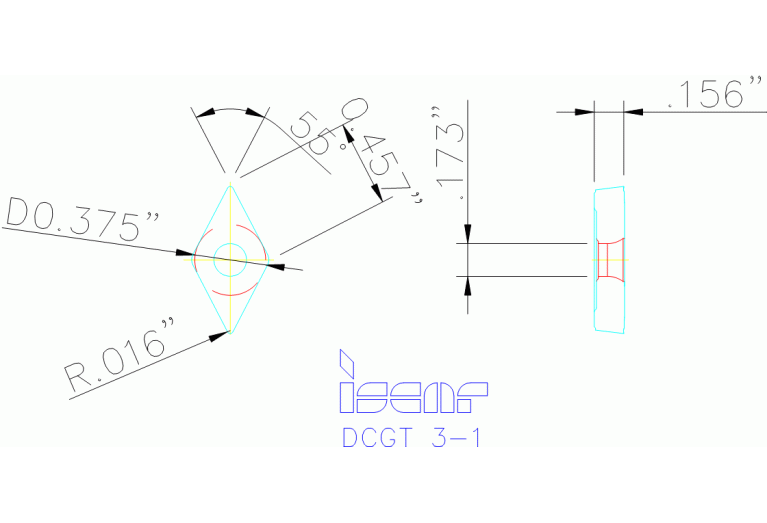

DCGT 11T304 IC20N

Артикул: 5504981

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

DC11T3043N

EPSR Insert included angle

55 Degree

FamilyProducts

55° Rhombic Inserts with a 7° Positive Clearance for Finishing Applications

GRDMFG Grade manufacturers designation

IC20N

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5504981

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$DC11T3043NB$$04

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03 ISO

ISO$DC11T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3043N

Name Identifying order number

DCGT 11T304 IC20N

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
