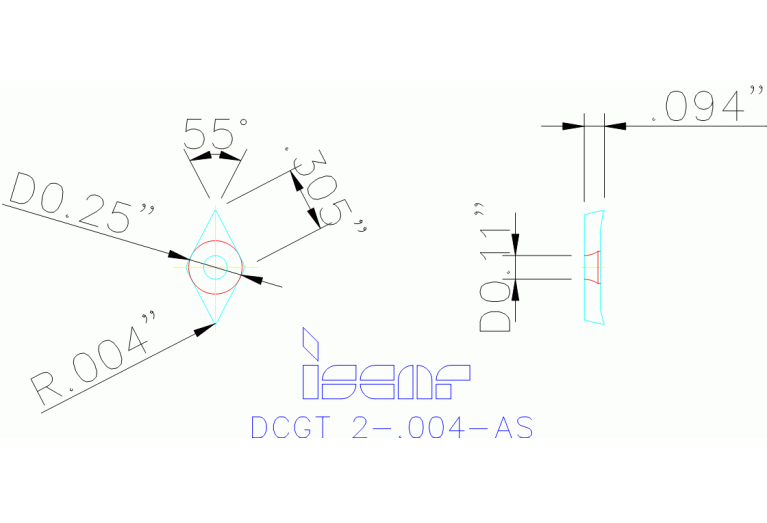

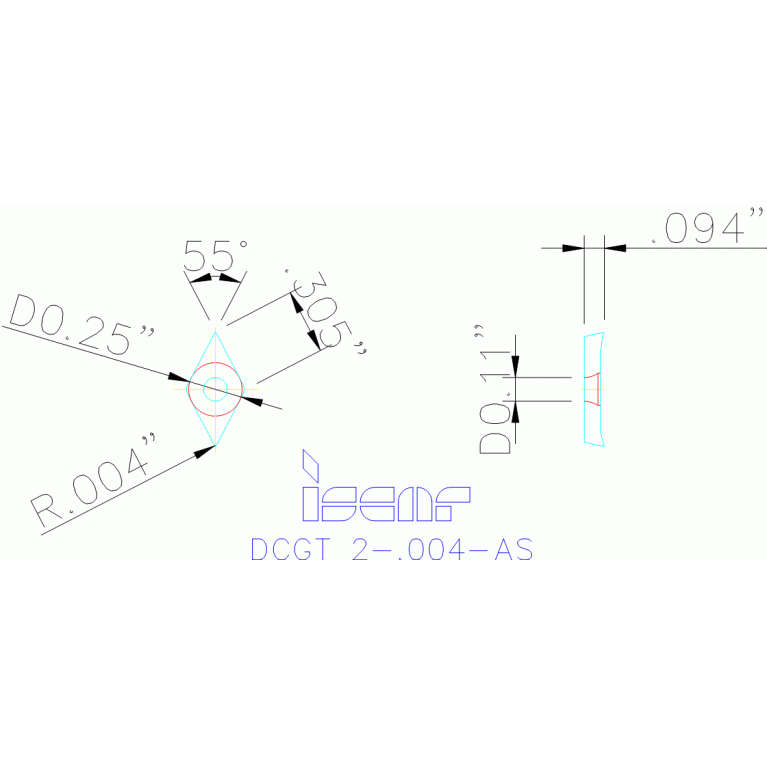

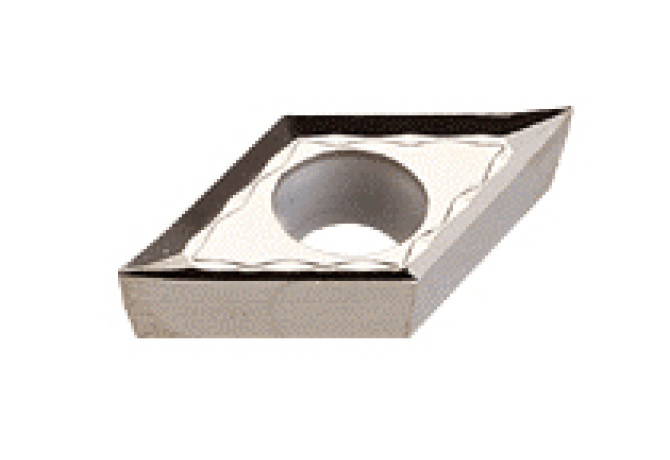

DCGT 070201-AS IC520

Артикул: 5590130

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/1/2022

DIN

DC0702013N

EPSR Insert included angle

55 Degree

FamilyProducts

55° Rhombic Inserts with a 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum

GRDMFG Grade manufacturers designation

IC520

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5590130

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$DC0702013NB$$01

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.75 mm

LOC-03 ISO

ISO$DC0702013NB$$01

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC0702013N

Name Identifying order number

DCGT 070201-AS IC520

RE Corner radius

0.1 mm

S Insert thickness

2.38 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
