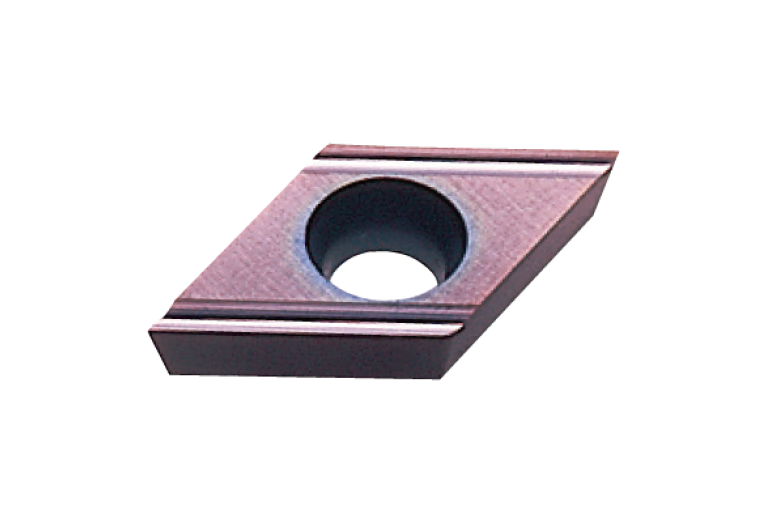

DCET070200R-SN HTi10

Артикул: 267899

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

4/11/2002

EPSR Insert included angle

55 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

HTi10

IC Inscribed circle diameter

6.35 mm

ID Technical product number

267899

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.75 mm

LE Cutting edge effective length

7.7 mm

Name Identifying order number

DCET070200R-SN HTi10

NOI Insert index count

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

DCET21.5V0RSN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
