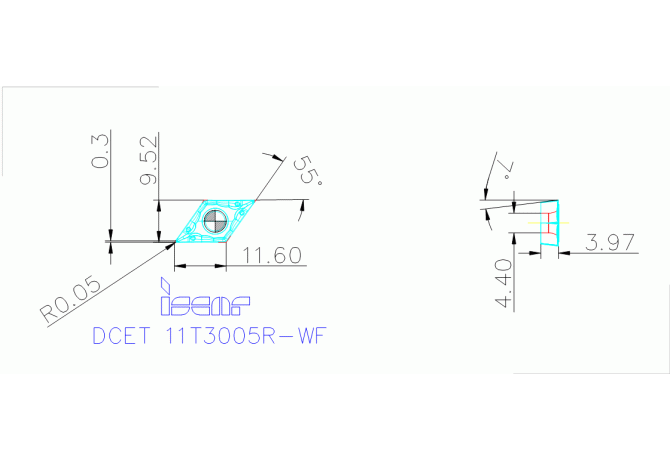

DCET 11T3005R-WF IC907

Артикул: 5506326

В наличии

В корзину

Описание

Характеристики

ANN Clearance angle minor

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2012

DIN

DC11T3003R

EPSR Insert included angle

55 Degree

FamilyProducts

DCET 11T3005R-WF IC907

GRDMFG Grade manufacturers designation

IC907

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5506326

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

DC11T3003R

Materials

M,S,H

Name Identifying order number

DCET 11T3005R-WF IC907

RE Corner radius

0.05 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

DCET11T300

STDDESAnsi Standard designation ANSI

DCET32.50

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
