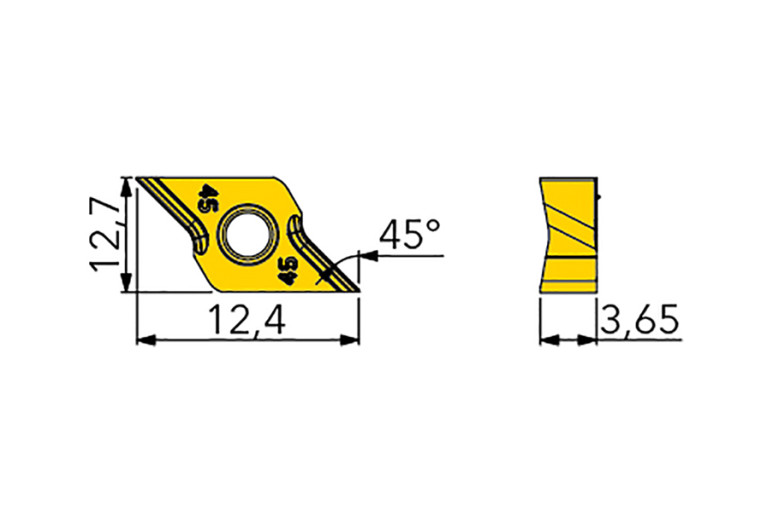

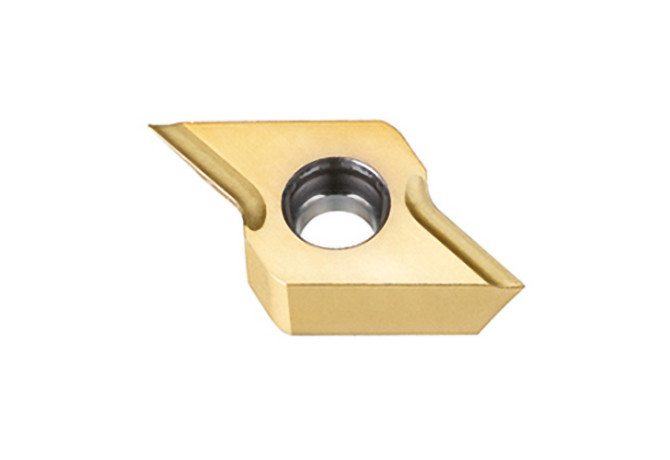

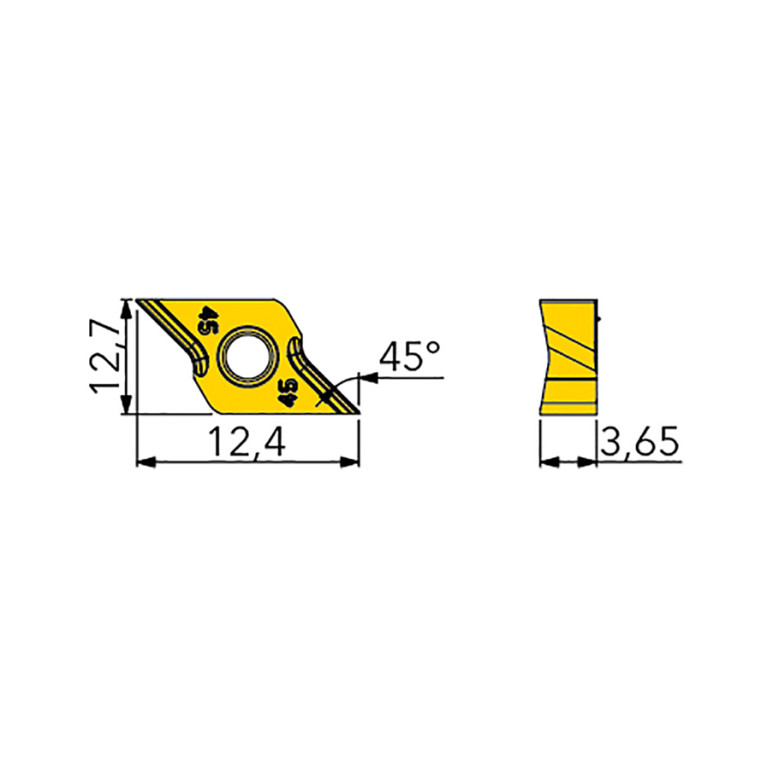

CRNG0802-45CD IN2505

Артикул: 5522712

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-3576

EPSR Insert included angle

45 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

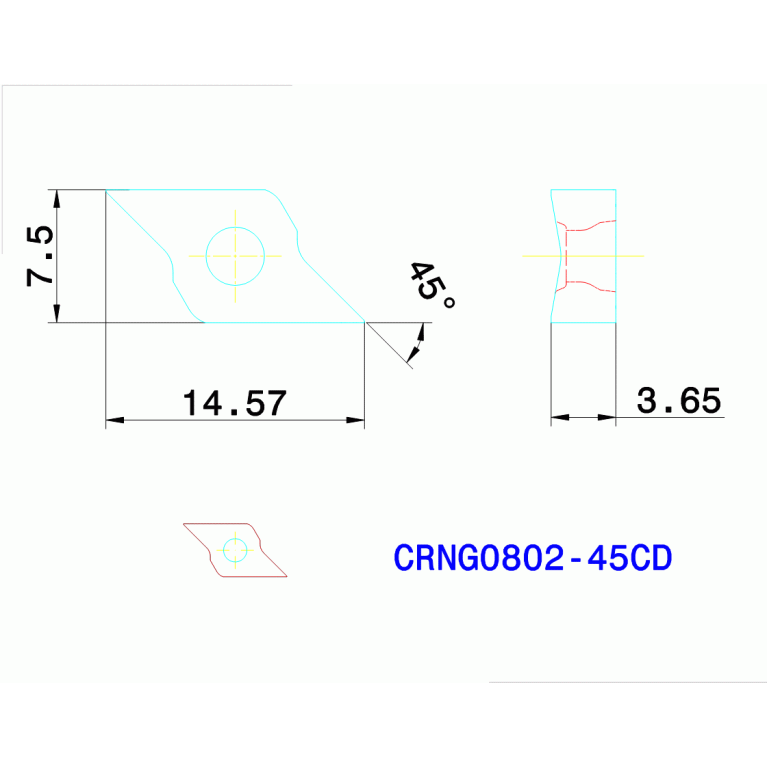

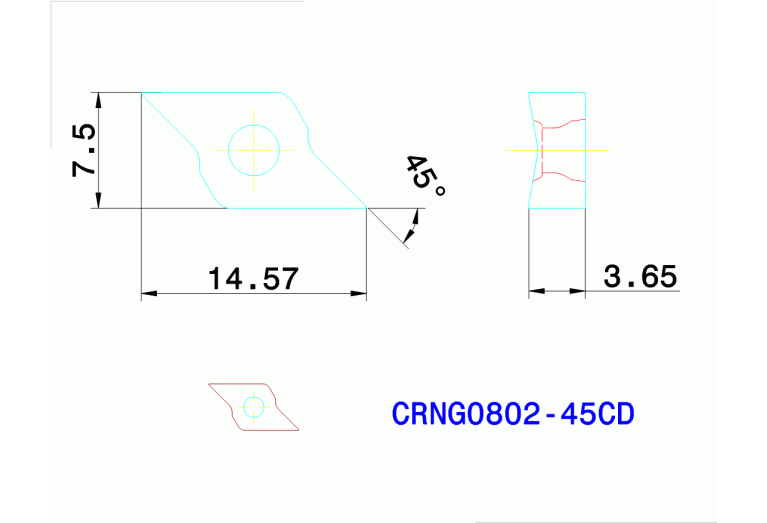

IC Inscribed circle diameter

7.5 mm

ID Technical product number

5522712

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

3 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3576

Name Identifying order number

CRNG0802-45CD IN2505

RE Corner radius

0 mm

S Insert thickness

3.65 mm

S1 Insert thickness total

3.65 mm

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
