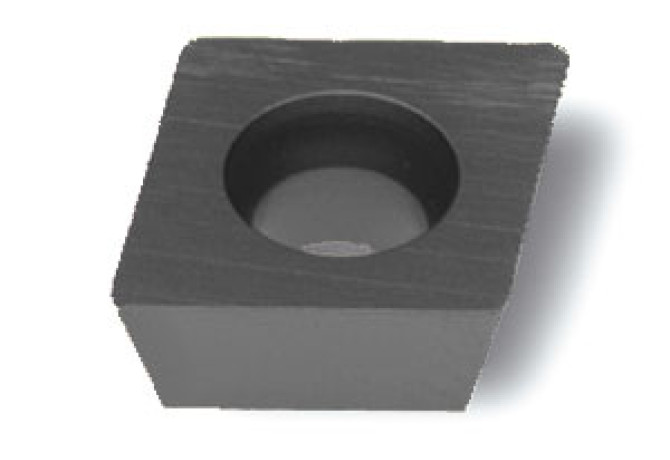

CPMW 060304EN SR216

Артикул: 247340

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

DIN

CP0603043N

EPSR Insert included angle

80 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

SR216

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

6.35 mm

ID Technical product number

247340

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0603043N

Name Identifying order number

CPMW 060304EN SR216

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CPMW060304EN

STDDESAnsi Standard designation ANSI

CPMW221EN

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
