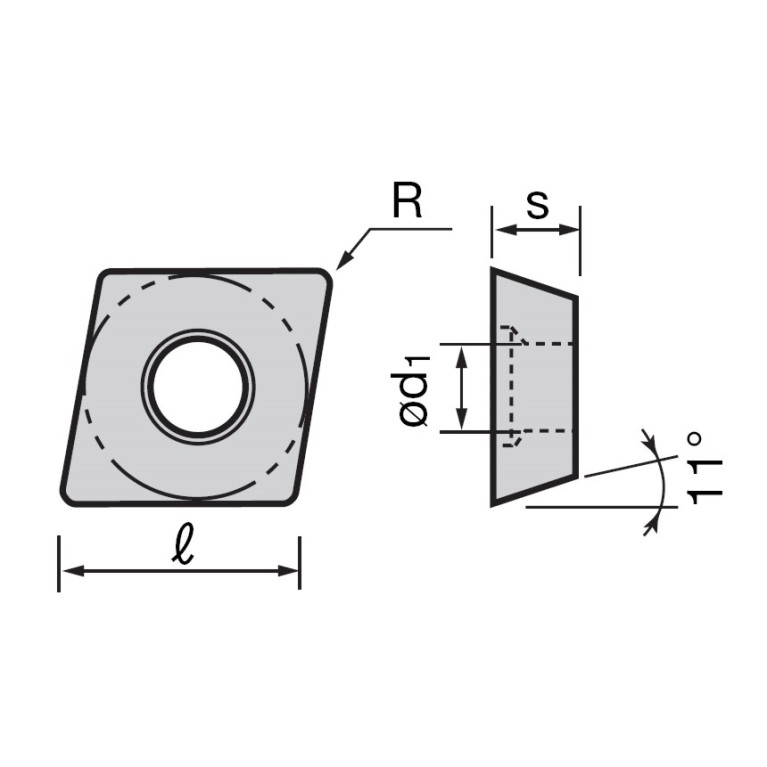

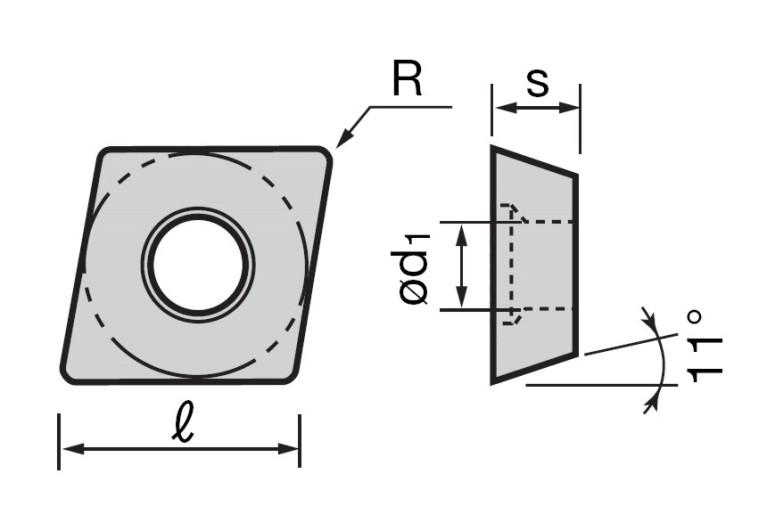

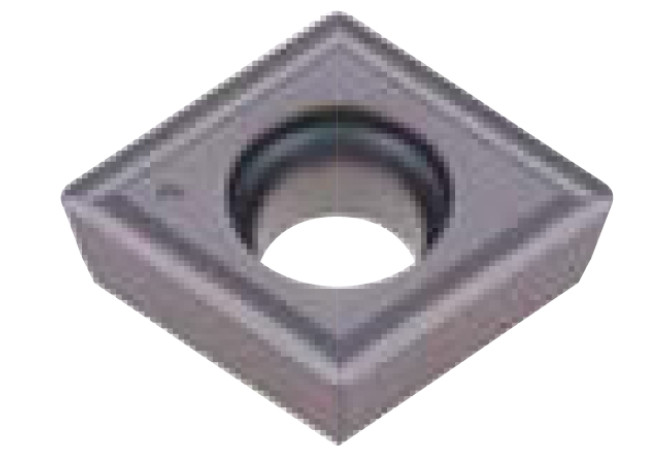

CPMT120408 AH905

Артикул: 6879346

В наличии

В корзину

Описание

Характеристики

BN Face land width

0.25 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN-PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2013

DIN

CP1204 3N

EPSR Insert included angle

80 Degree

FamilyProducts

indexable insert

GAN Insert rake angle

10 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRDMFG Grade manufacturers designation

AH905

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6879346

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP1204 3N

Materials

Name Identifying order number

CPMT120408 AH905

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CPMT120408

STDDESAnsi Standard designation ANSI

CPMT432

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
