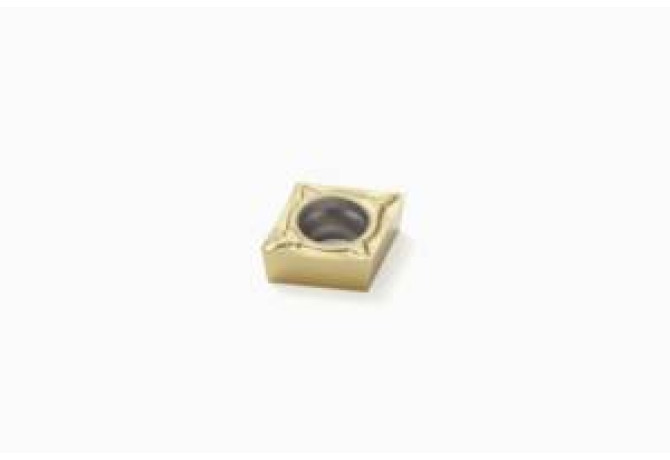

CPMT09T304-F1 TP200

Артикул: 00092732

В наличии

В корзину

Описание

Характеристики

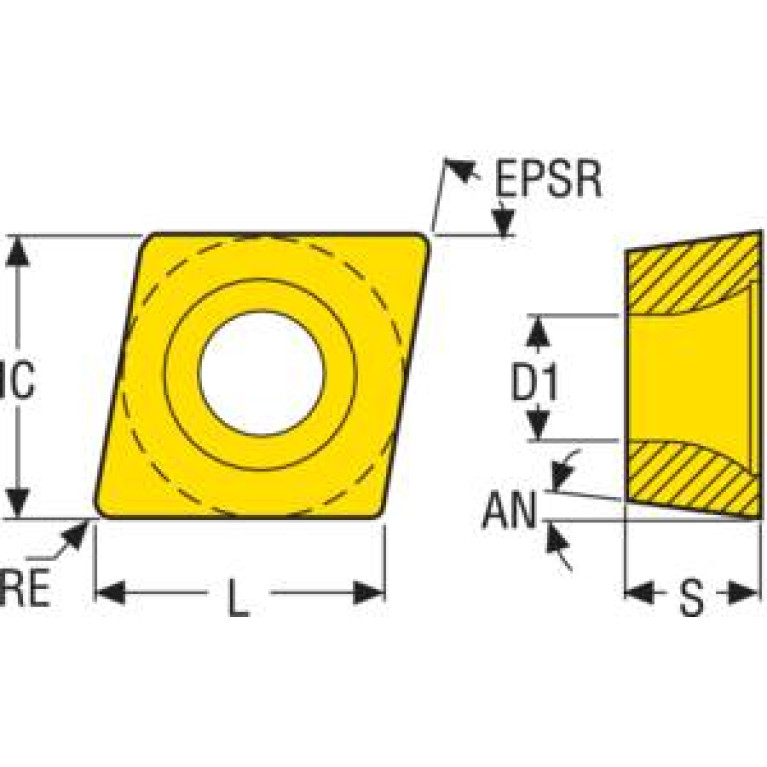

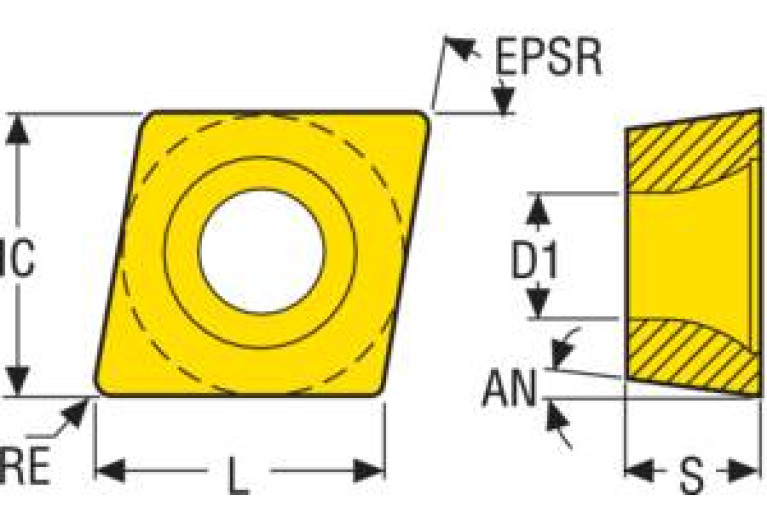

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

CP09T3043N

EPSR Insert included angle

80 Degree

FamilyProducts

CPMT09T304-F1 TP200

GRDMFG Grade manufacturers designation

TP200

IC Inscribed circle diameter

9.525 mm

ID Technical product number

00092732

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CP09T3043NB$$04

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.7 mm

LE Cutting edge effective length

8.6 mm

LOC-03 ISO

ISO$CP09T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP09T3043N

MIID Master insert identification

CPMT09T304 TP200

Name Identifying order number

CPMT09T304-F1 TP200

NameAnsi Identifying order number inch alternative

CPMT32.51-F1 TP200

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

CPMT09T304

STDDESAnsi Standard designation ANSI

CPMT32.51

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
