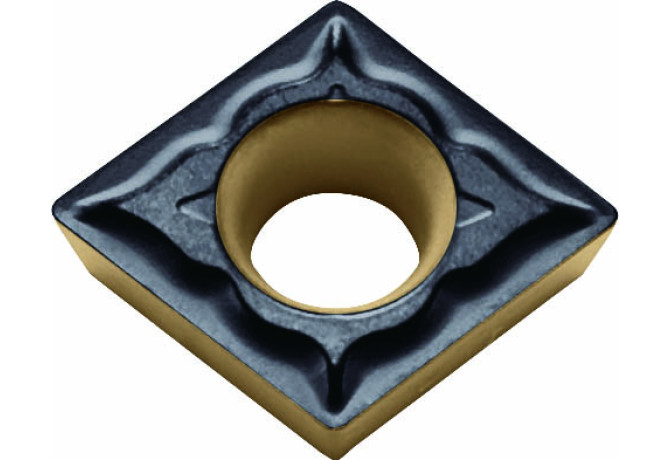

CPMT090308XQ CA125P

Артикул: TMK00347

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD Coated Carbide

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

P20

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

3/15/2023

DIN

CP0903083N

EPSR Insert included angle

80 Degree

FamilyProducts

KYOCERA Indexable insert for Turning

GRDMFG Grade manufacturers designation

CA125P

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TMK00347

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.672 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0903083N

MIID Master insert identification

CPMT090308XQ CA125P

Name Identifying order number

CPMT090308XQ CA125P

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

STDDES Standard designation

CPMT090308XQ

STDDESAnsi Standard designation ANSI

CPMT322XQ

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
