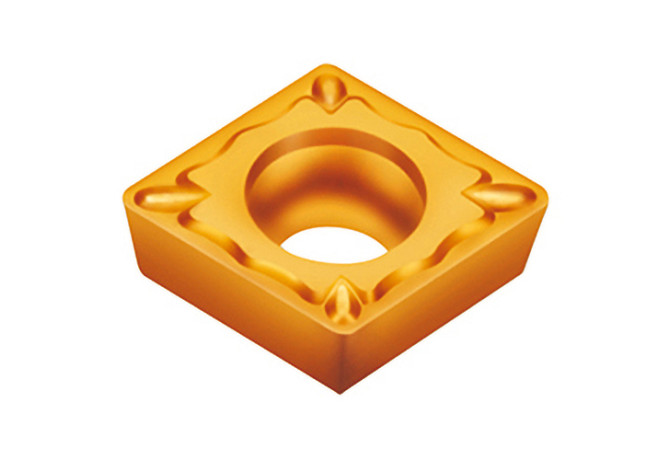

CPMT 080204 FG CT3000

Артикул: 5780215

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.4 mm

Delivery state

NL - Discontinued

DIN

CP0802043N

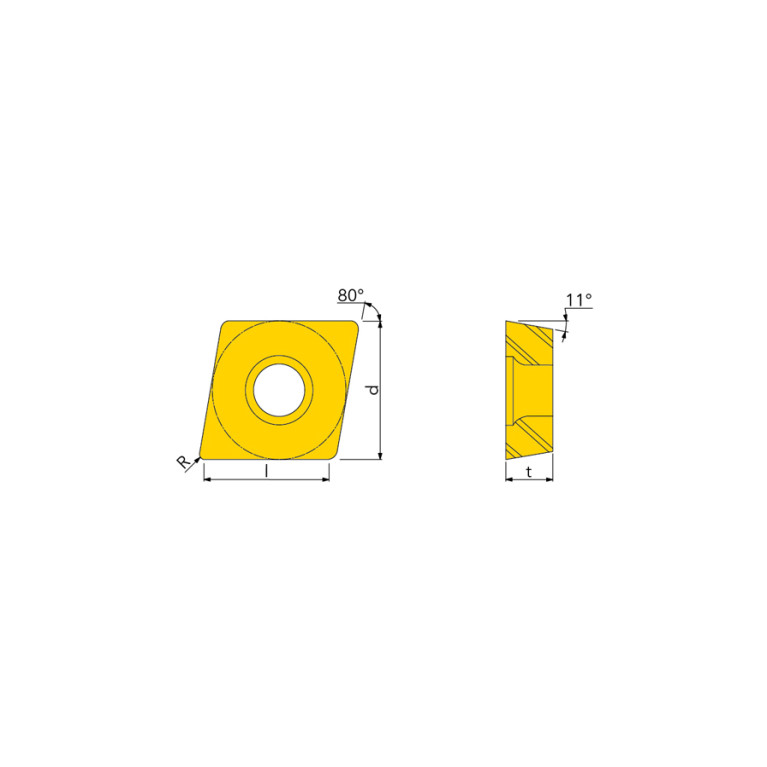

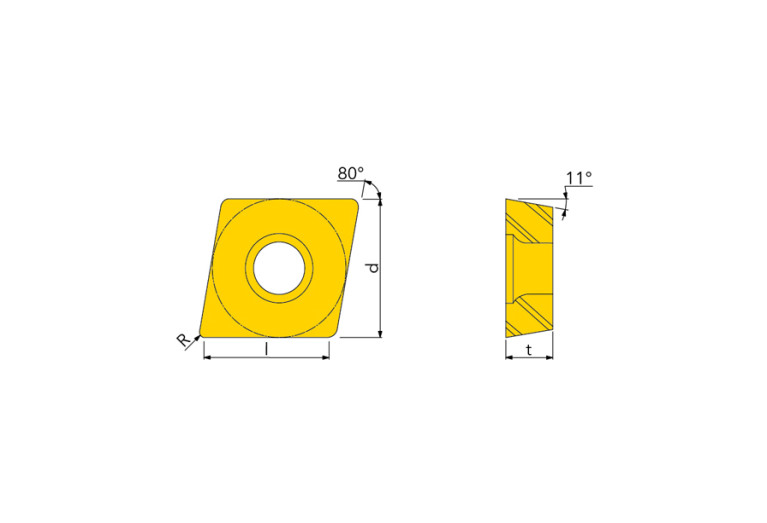

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, positive 11° clearance 80° rhombic inserts for finishing

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

IC Inscribed circle diameter

7.94 mm

ID Technical product number

5780215

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.6 mm

LE Cutting edge effective length

0.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0802043N

MIID Master insert identification

CPMT080204 CT3000

Name Identifying order number

CPMT 080204 FG CT3000

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CPMT080204

STDDESAnsi Standard designation ANSI

CPMT2.51.51

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
