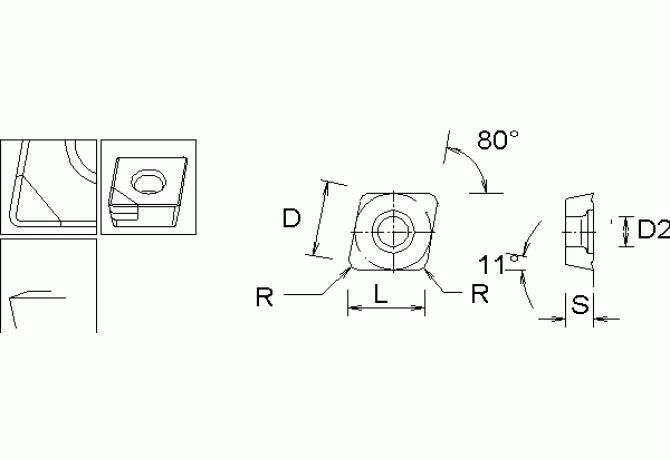

CPGW060208F KD100

Артикул: CPGW060208F KD100

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.9 mm

Delivery state

LH - Stocked

DIN

KH-WP SC CPGW0602

EPSR Insert included angle

80 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

KD100

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

KCH Corner chamfer angle

80 Degree

L Cutting edge length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP SC CPGW0602

Name Identifying order number

CPGW060208F KD100

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CPGW060208F

STDDESAnsi Standard designation ANSI

CPGW21.52F

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
