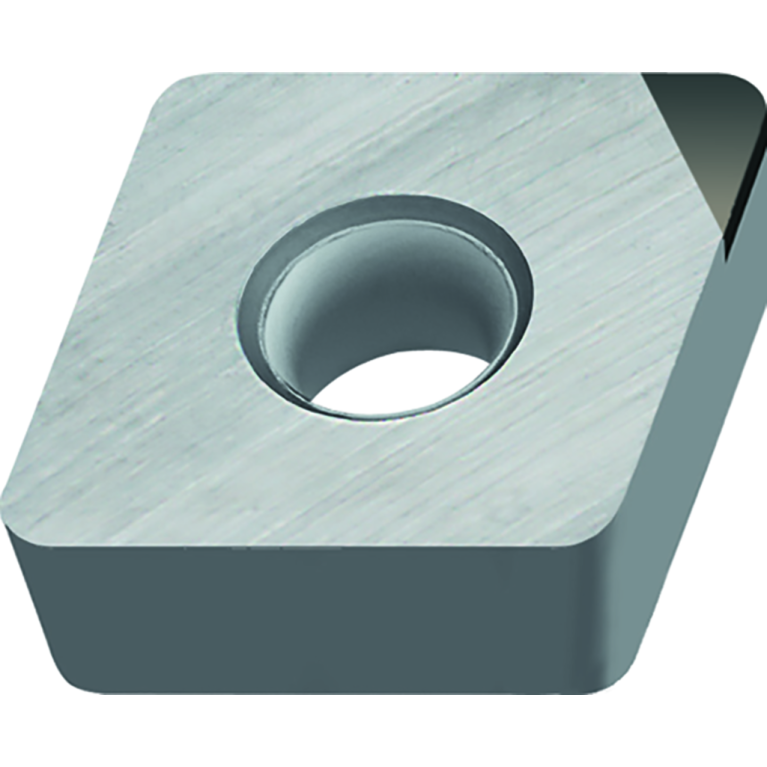

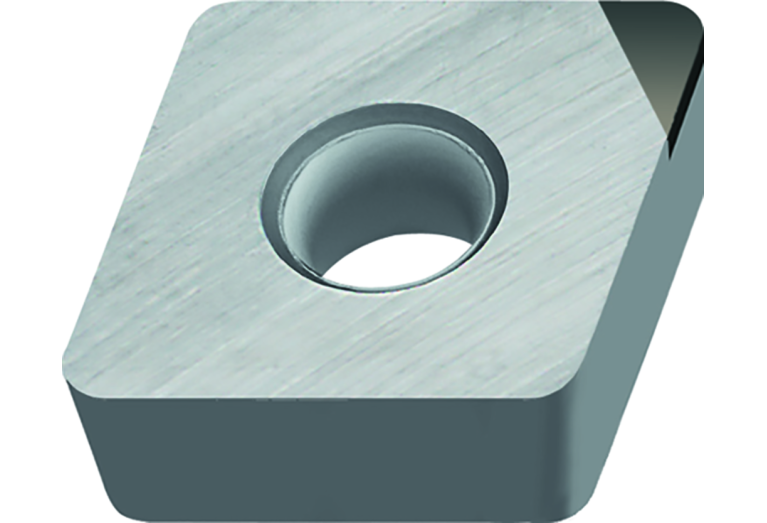

CPGW050204 WCB50

Артикул: 5169033

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

A27

COATN Coating / Покрытие

CBN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

12/1/2023

DIN

W-CP0502$$3NB$$$$

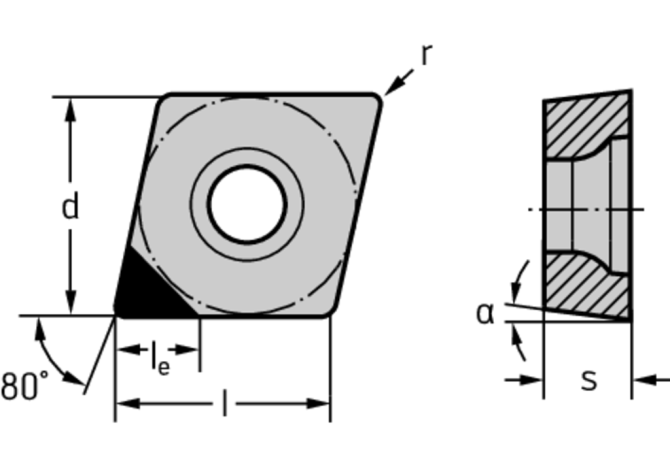

EPSR Insert included angle

80 Degree

FamilyProducts

CBN – Positive rhombic 80° CPGW

GRDMFG Grade manufacturers designation

WCB50

IC Inscribed circle diameter

5.56 mm

ID Technical product number

5169033

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$CP0502$$3NB$$$$

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

5.65 mm

LE Cutting edge effective length

2.4 mm

LOC-03 ISO

WR$$CP0502$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-CP0502$$3NB$$$$

Name Identifying order number

CPGW050204 WCB50

NameAnsi Identifying order number inch alternative

CPGT731 WCB50

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CPGW050204

STDDESAnsi Standard designation ANSI

CPGW1.81.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.006 kg

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
