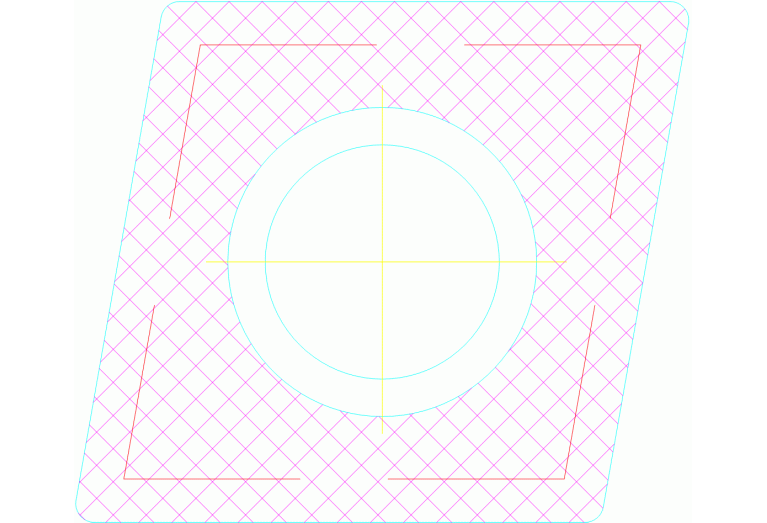

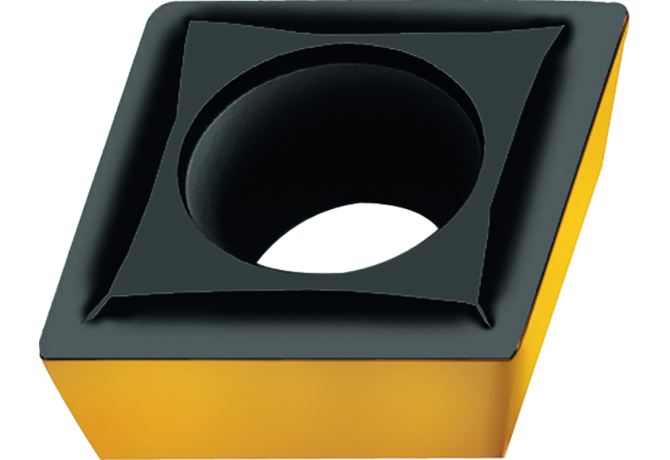

CPGT050202-PF5 WAK10

Артикул: 5022013

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF5

CECC Cutting edge condition code

E - Rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

12/1/2023

DIN

CP0502023N

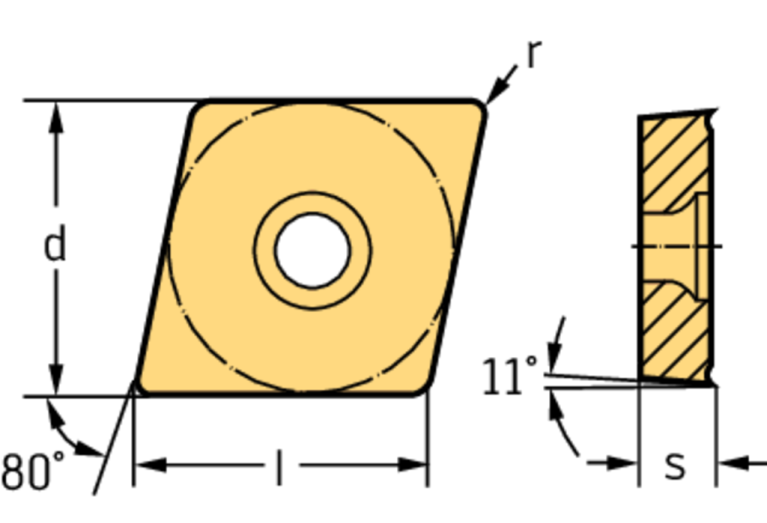

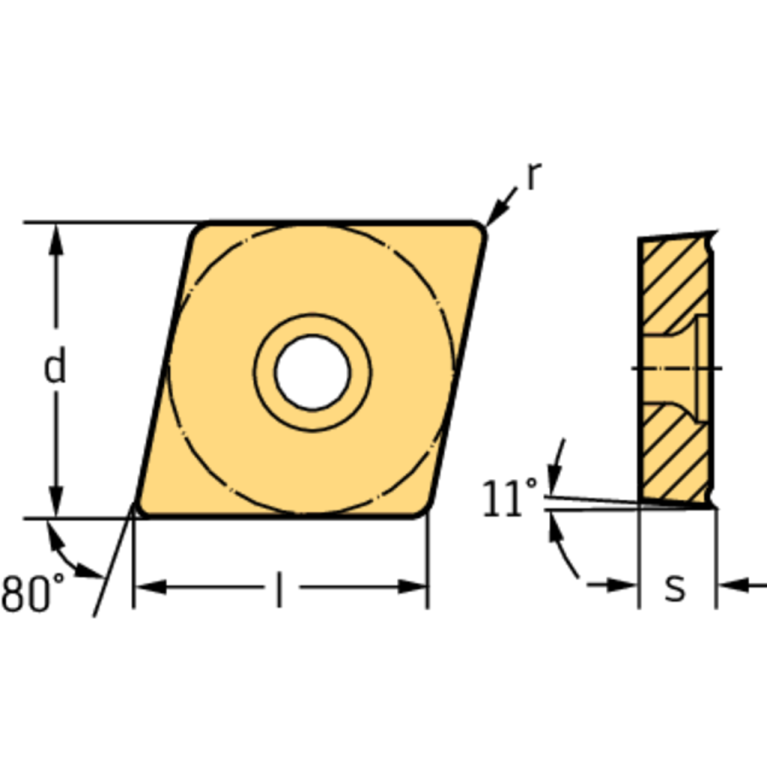

EPSR Insert included angle

80 Degree

FamilyProducts

Positive rhombic 80° CPGT

GRDMFG Grade manufacturers designation

WAK10

IC Inscribed circle diameter

5.55625 mm

ID Technical product number

5022013

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CP0502023NB$$02

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

5.642 mm

LOC-03 ISO

ISO$CP0502023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0502023N

MIID Master insert identification

CPGT050202 WAK10

Name Identifying order number

CPGT050202-PF5 WAK10

NameAnsi Identifying order number inch alternative

CPGT1.8(1.5)0.5-PF5 WAK10

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

CPGT050202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
