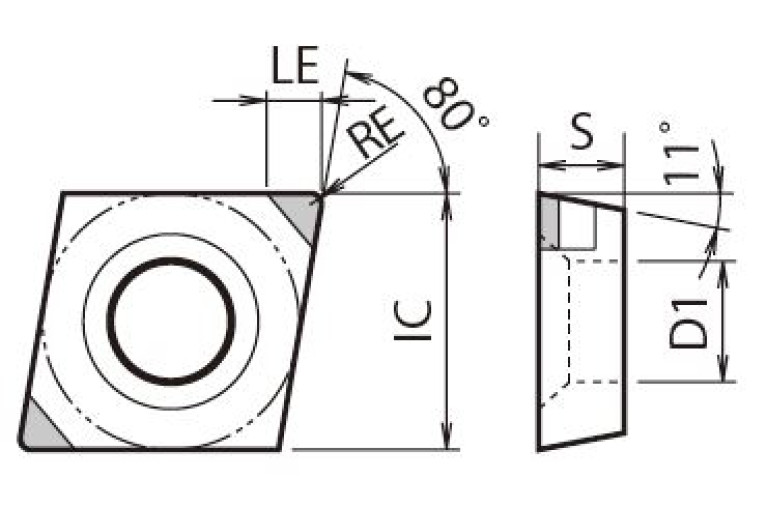

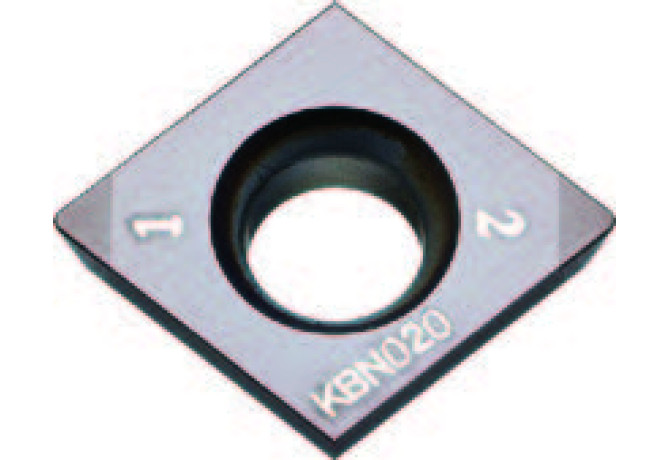

CPGB080204S01035MET KBN010

Артикул: TFD00081

В наличии

В корзину

Описание

Характеристики

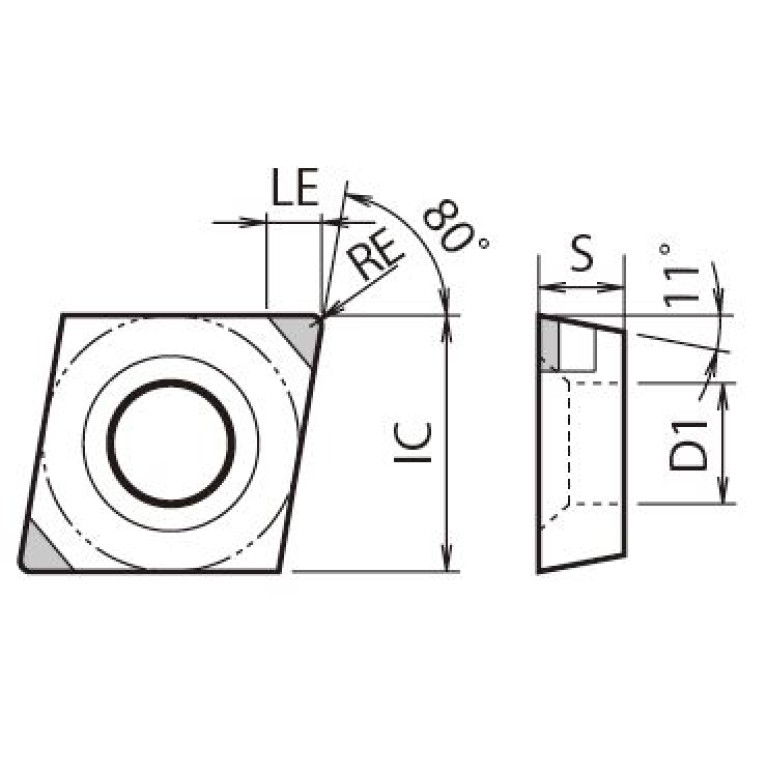

COATN Coating / Покрытие

MEGACOAT TOUGH CBN

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

H01

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

8/4/2023

DIN

CP0802044N

EPSR Insert included angle

80 Degree

FamilyProducts

CBN for Machining Hardened Material

GRDMFG Grade manufacturers designation

KBN010

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

7.94 mm

ID Technical product number

TFD00081

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8.062 mm

LE Cutting edge effective length

1.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CP0802044N

MIID Master insert identification

CPGB080204S01035MET KBN010

Name Identifying order number

CPGB080204S01035MET KBN010

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

STDDES Standard designation

CPGB080204S01035MET

STDDESAnsi Standard designation ANSI

CPGB2.51.51S01035MET

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

11 Degree
