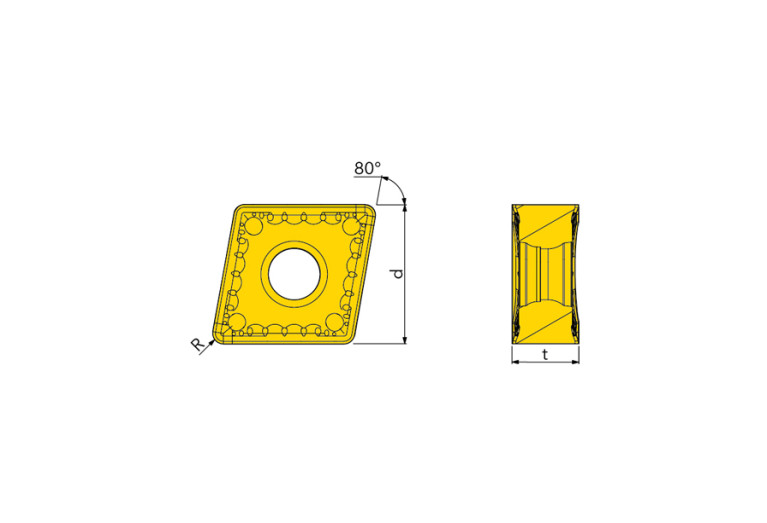

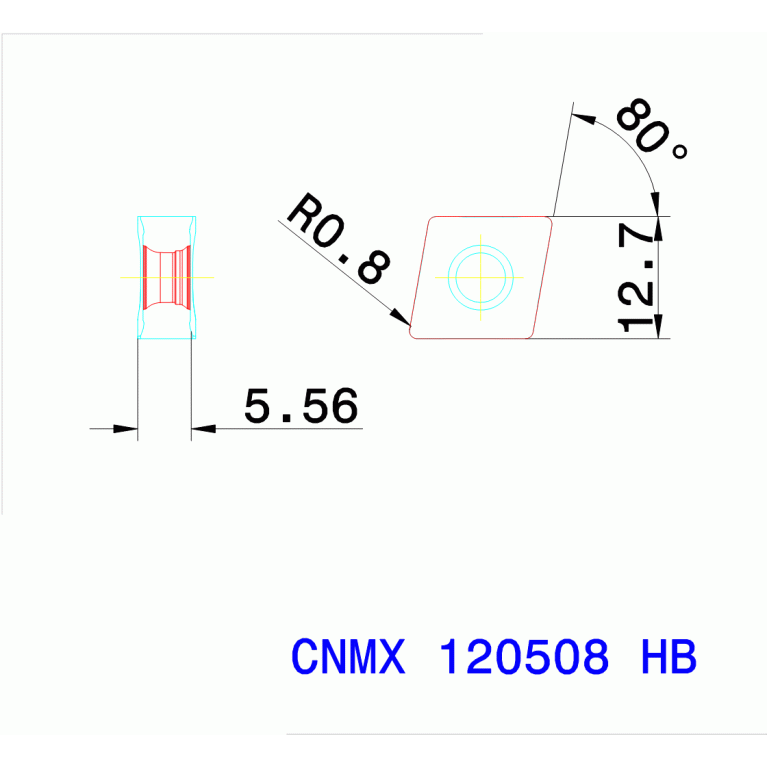

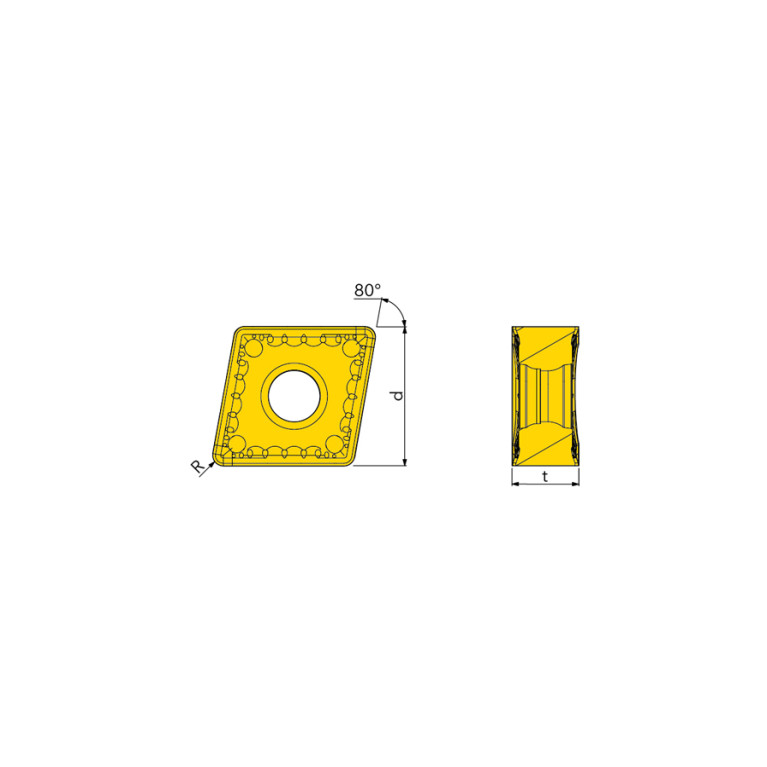

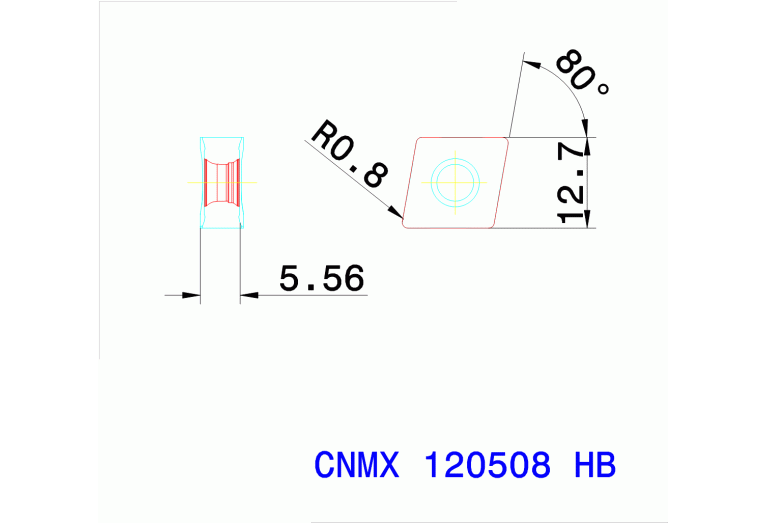

CNMX 120508 HB TT8105

Артикул: 6139954

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

CN1205087N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° rhombic insert for roughing

GRDMFG Grade manufacturers designation

TT8105

GRDPRIO Standard designation of the grade main application

P01-P15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6139954

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1205087N

Name Identifying order number

CNMX 120508 HB TT8105

RE Corner radius

0.8 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

CNMX120508

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
