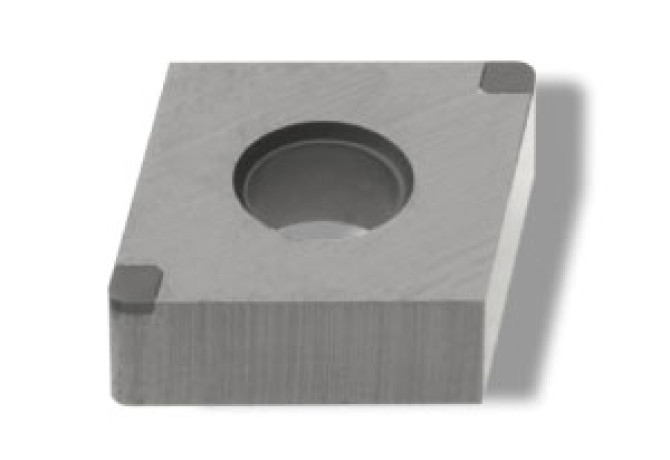

CNMX 120408SN TA201

Артикул: CNMX 120408SN TA201

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

DIN

CN1204082N

EPSR Insert included angle

80 Degree

FamilyProducts

CBN turning insert

GRDMFG Grade manufacturers designation

TA201

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204082N

Name Identifying order number

CNMX 120408SN TA201

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMX120408SN

STDDESAnsi Standard designation ANSI

CNMX432SN

TCINS Tolerance class insert

Working process

DDA - External turning

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
