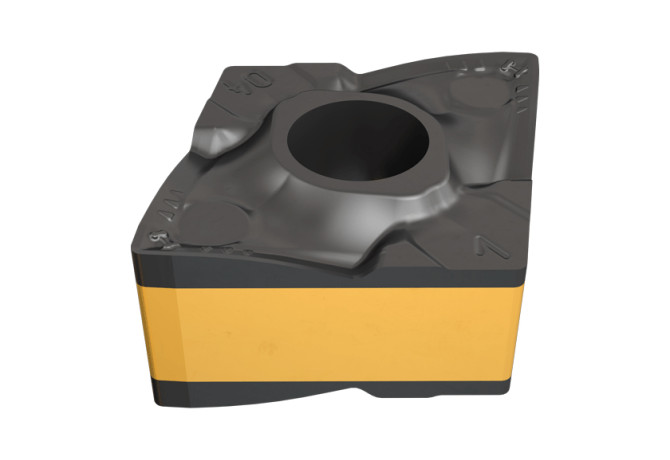

CNMX 090604-M3MW IC830

Артикул: 3328788

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

HMW

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

CN0906042N

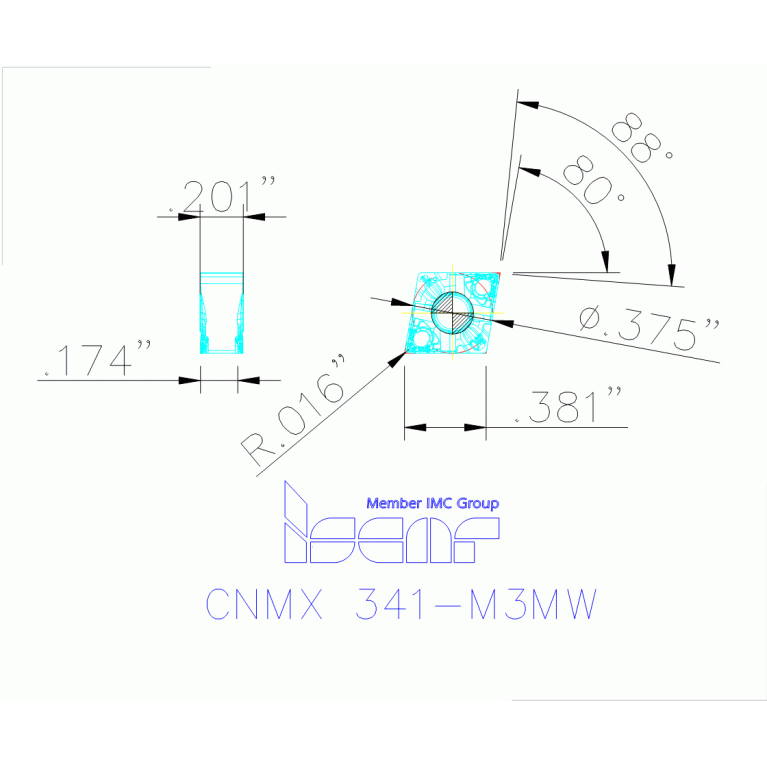

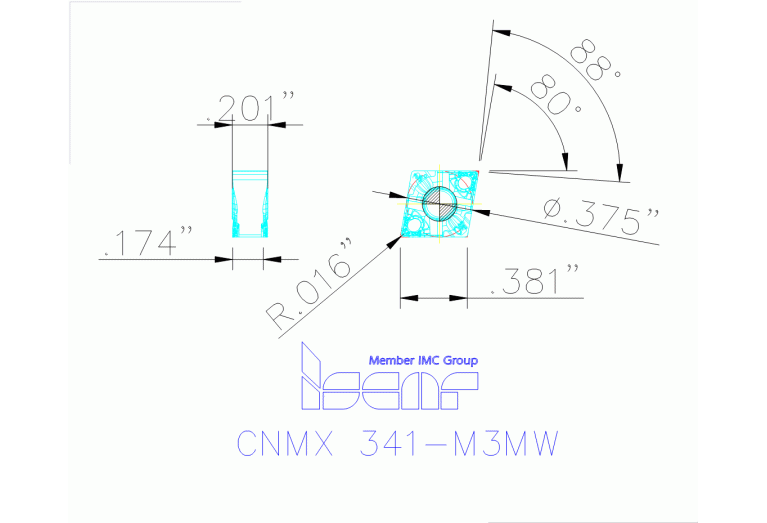

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided 80° Rhombic Inserts with a High Helical Cutting Edge for High Metal Removal Rates of Stainless Steel

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

9.52 mm

ID Technical product number

3328788

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CN0906042NAZZ04

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LOC-03 ISO

ISO$CN0906042NAZZ04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0906042N

Name Identifying order number

CNMX 090604-M3MW IC830

RE Corner radius

0.4 mm

S Insert thickness

4.4 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
