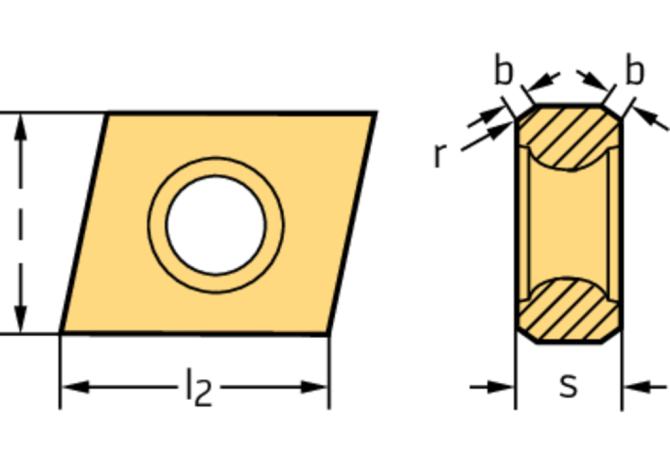

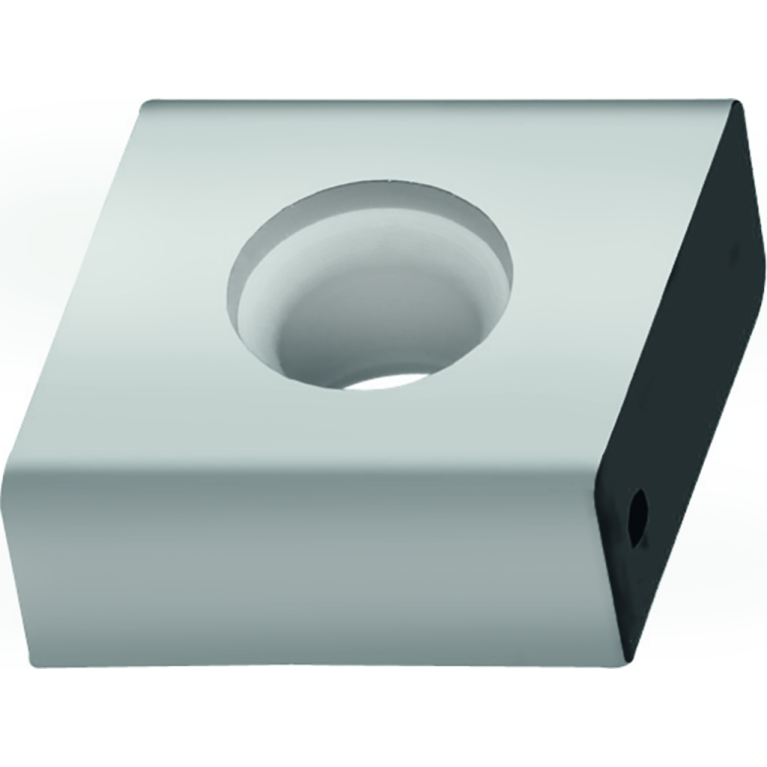

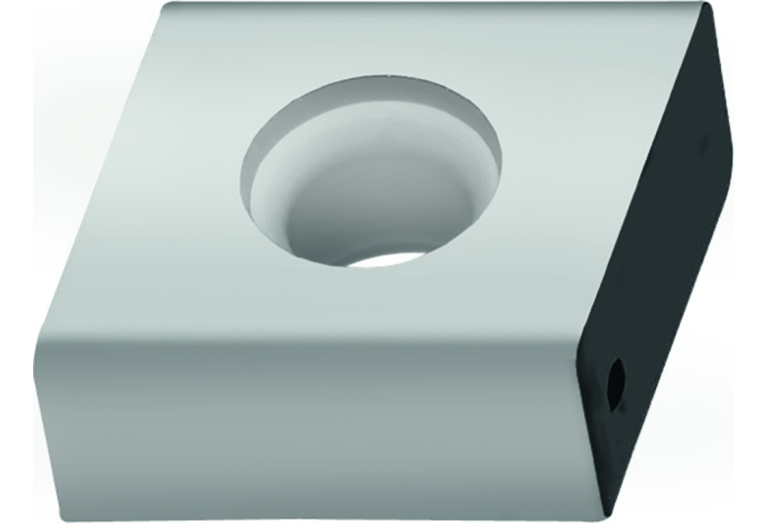

CNMQ080508-A57T WAK15

Артикул: 5015769

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

A57T

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

12/1/2023

DIN

W-MC0805083$B$T08

EPSR Insert included angle

80 Degree

FamilyProducts

Tangential rhombic CNMQ

GRDMFG Grade manufacturers designation

WAK15

ID Technical product number

5015769

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$MC0805083$B$T08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8 mm

LOC-03 ISO

WR$$MC0805083$B$T08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-MC0805083$B$T08

Name Identifying order number

CNMQ080508-A57T WAK15

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

CNMQ080508

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.006 kg

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
