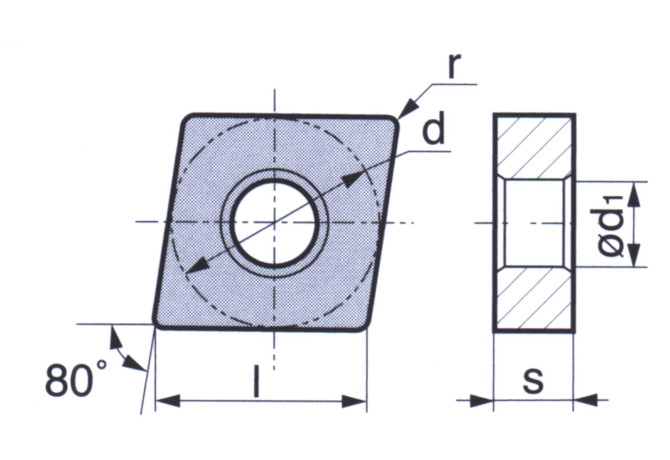

CNMM250924EN ENW AC3000

Артикул: CNMM250924EN ENW AC3000

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

ENW

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

Al2O3+TiCN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.2 mm

Delivery state valid from

1/1/2005

DIN

CN2509 2N

EPSR Insert included angle

80 Degree

FamilyProducts

Sumitomo indexable insert for turning

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

AC3000

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

25.4 mm

ID Technical product number

CNMM250924EN ENW AC3000

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN2509 2N

Name Identifying order number

CNMM250924EN ENW AC3000

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

CNMM250924EN

STDDESAnsi Standard designation ANSI

CNMM866EN

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
