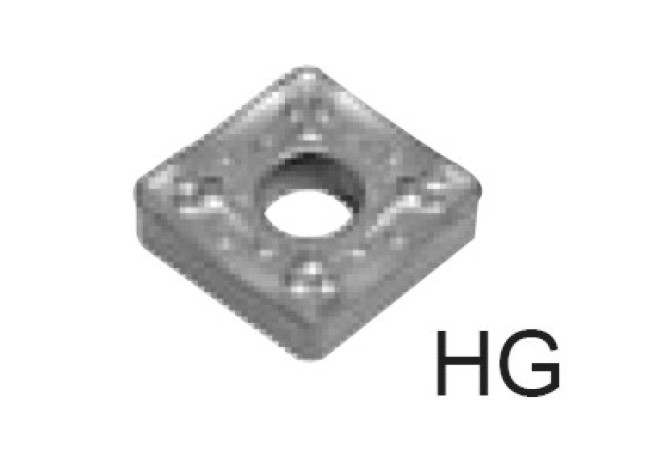

CNMM160612 NHG AC900G

Артикул: CNMM160612 NHG AC900G

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NHG

COATN Coating / Покрытие

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

7/1/2021

DIN

CN1606122N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, solid carbide, CNMM-NHG

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-K01

GRDMFG Grade manufacturers designation

AC900G

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

15.875 mm

ID Technical product number

CNMM160612 NHG AC900G

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1606122N

Materials

Name Identifying order number

CNMM160612 NHG AC900G

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

CNMM160612

STDDESAnsi Standard designation ANSI

CNMM543

TCINS Tolerance class insert

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
