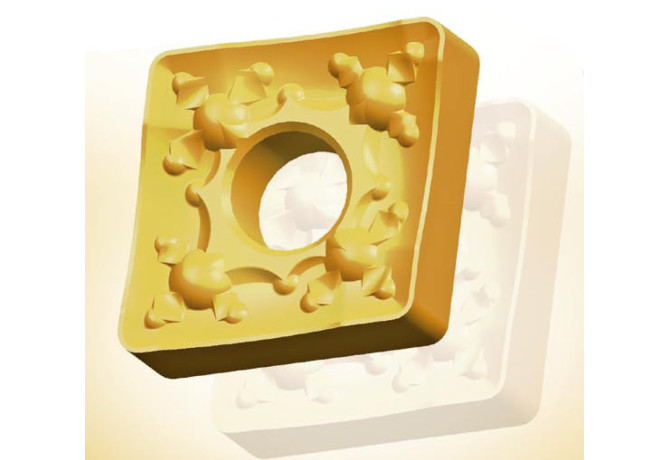

CNMM120408-TRS T9135

Артикул: 6996455

В наличии

В корзину

Описание

Характеристики

BN Face land width

0.3 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

TRS

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2013

DIN

CN1204 2N

EPSR Insert included angle

80 Degree

FamilyProducts

TAC Wendeschneidplatte

GAN Insert rake angle

24 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDMFG Grade manufacturers designation

T9135

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6996455

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.9 mm

LE Cutting edge effective length

6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204 2N

Materials

Name Identifying order number

CNMM120408-TRS T9135

NameAnsi Identifying order number inch alternative

CNMM 432 TRS T9135

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMM120408

STDDESAnsi Standard designation ANSI

CNMM432

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

Главный задний угол (AN) / Clearance angle major (AN)

0 Degree
