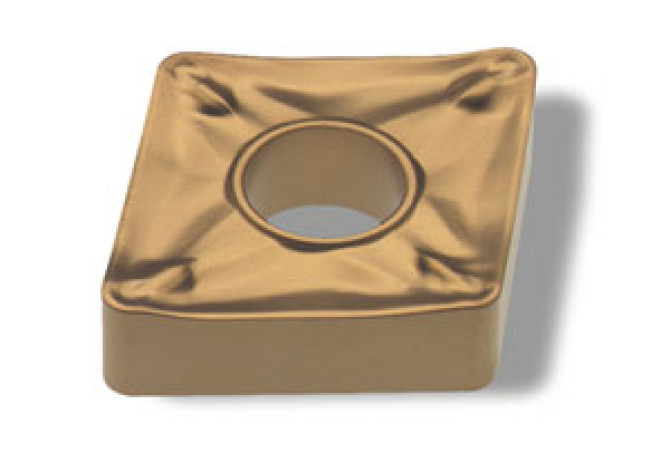

CNMM 160616SN-TRR GM527

Артикул: CNMM 160616SN-TRR GM527

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

TRR

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

DIN

CN1606162N

EPSR Insert included angle

80 Degree

FamilyProducts

carbide turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRDMFG Grade manufacturers designation

GM527

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

15.87 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1606162N

Name Identifying order number

CNMM 160616SN-TRR GM527

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

CNMM160616SN

STDDESAnsi Standard designation ANSI

CNMM544SN

TCINS Tolerance class insert

Working process

DDA - External turning
