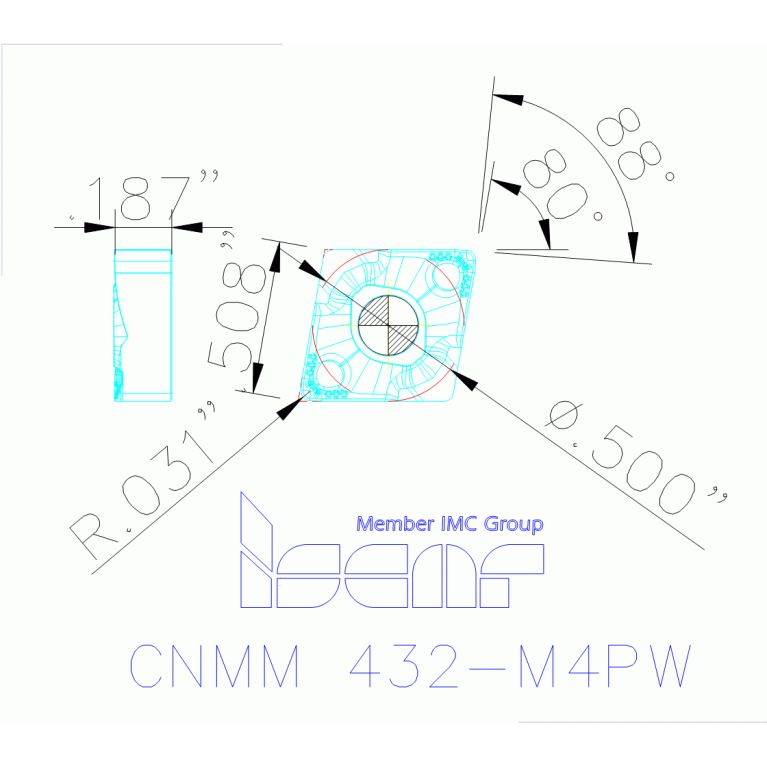

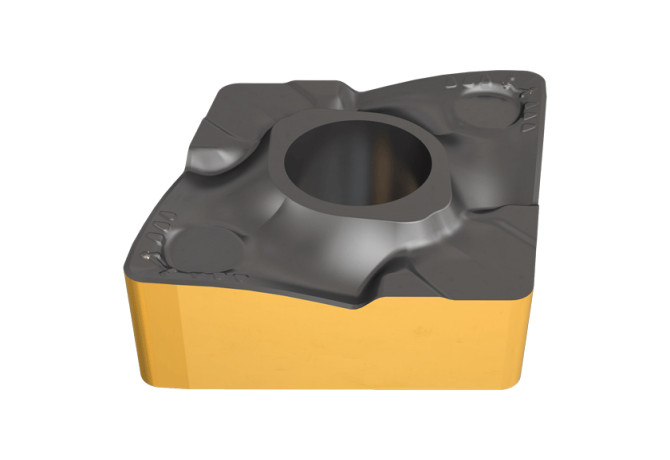

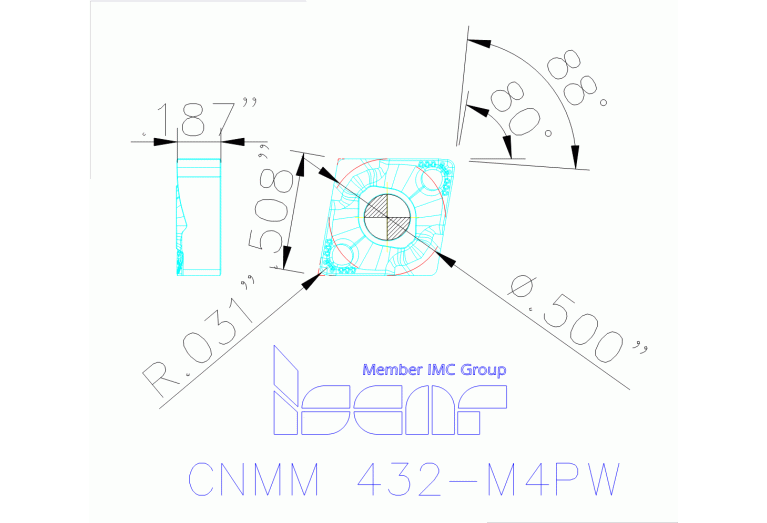

CNMM 120408-M4PW IC8150

Артикул: 5508282

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

HTW

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3+TiCN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

CN1204082N

EPSR Insert included angle

80 Degree

FamilyProducts

Very Positive Radial Insert with a Helical Cutting Edge and Positive Rake for Heavy Machining Applications

GRDMFG Grade manufacturers designation

IC8150

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5508282

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CN1204082NBLZ08

ISYC Subclass

201-03 - Rhombic insert

KRINS Cutting edge angle major

95 Degree

L Cutting edge length

12.9 mm

LOC-03 ISO

ISO$CN1204082NBLZ08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204082N

Name Identifying order number

CNMM 120408-M4PW IC8150

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
