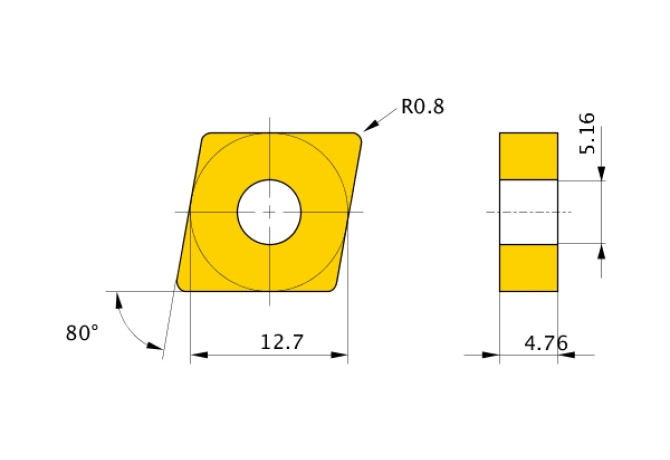

CNMG120408-GJ US735

Артикул: CNMG120408-GJ US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.15 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

CN1204082N

EPSR Insert included angle

80 Degree

FamilyProducts

insert for turning CNMG-GJ

GAN Insert rake angle

18 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

CNMG120408-GJ US735

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.89 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204082N

Materials

Name Identifying order number

CNMG120408-GJ US735

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMG120408

STDDESAnsi Standard designation ANSI

CNMG432

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.011 kg
