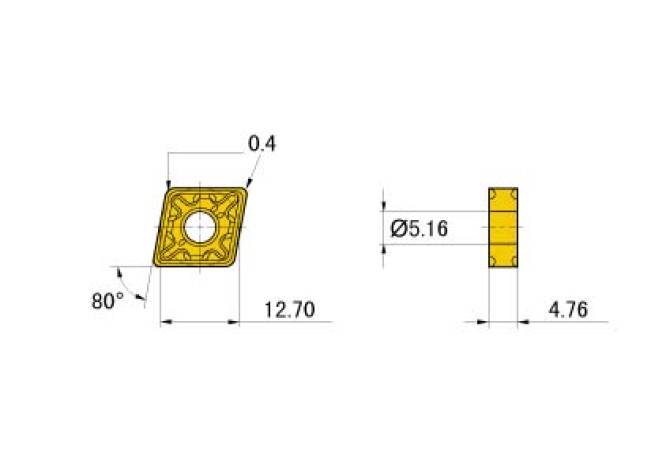

CNMG120404-MH US735

Артикул: CNMG120404-MH US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANN Clearance angle minor

0 Degree

BN Face land width

0.26 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

CN1204042N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING (negative), CNMG-MH

GAN Insert rake angle

16 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

CNMG120404-MH US735

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.89 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204042N

Materials

P,M,S

Name Identifying order number

CNMG120404-MH US735

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMG120404

STDDESAnsi Standard designation ANSI

CNMG431

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.02 kg
