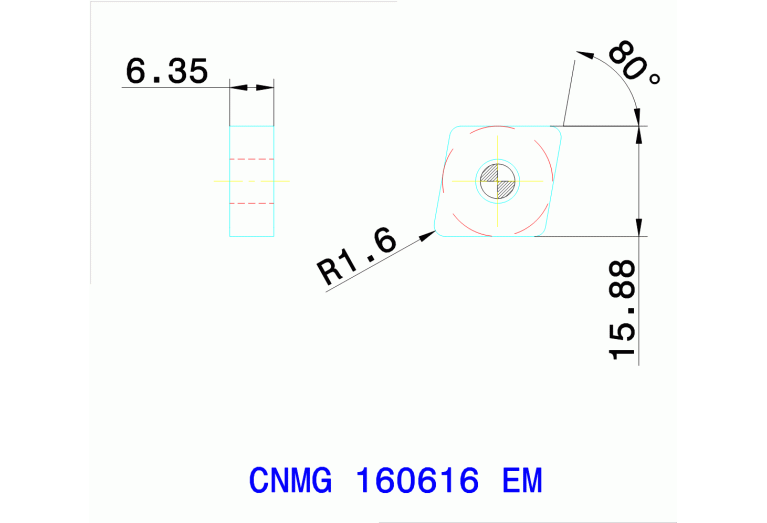

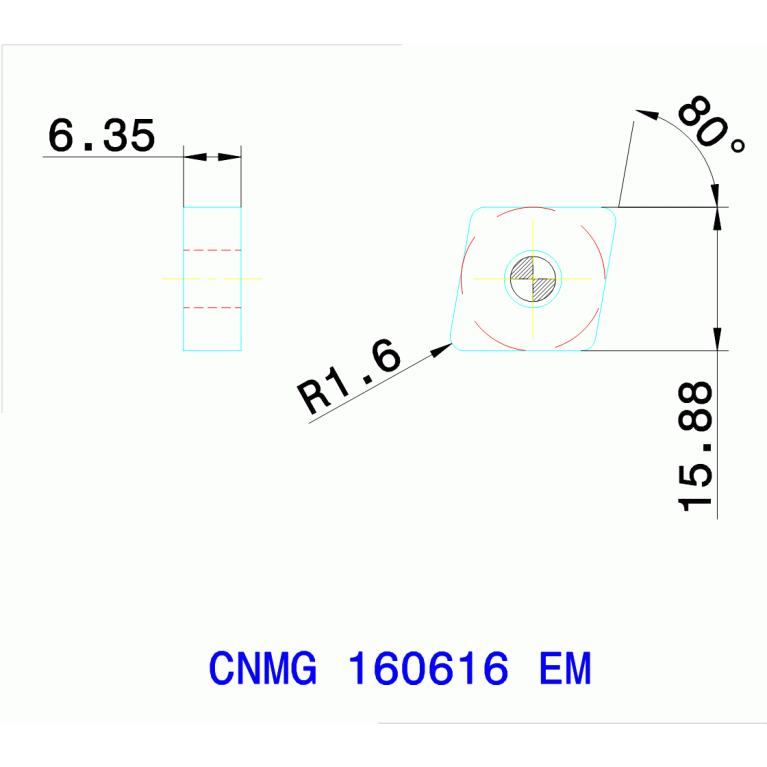

CNMG 160616 EM TT9235

Артикул: 5522412

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

CN1606162N

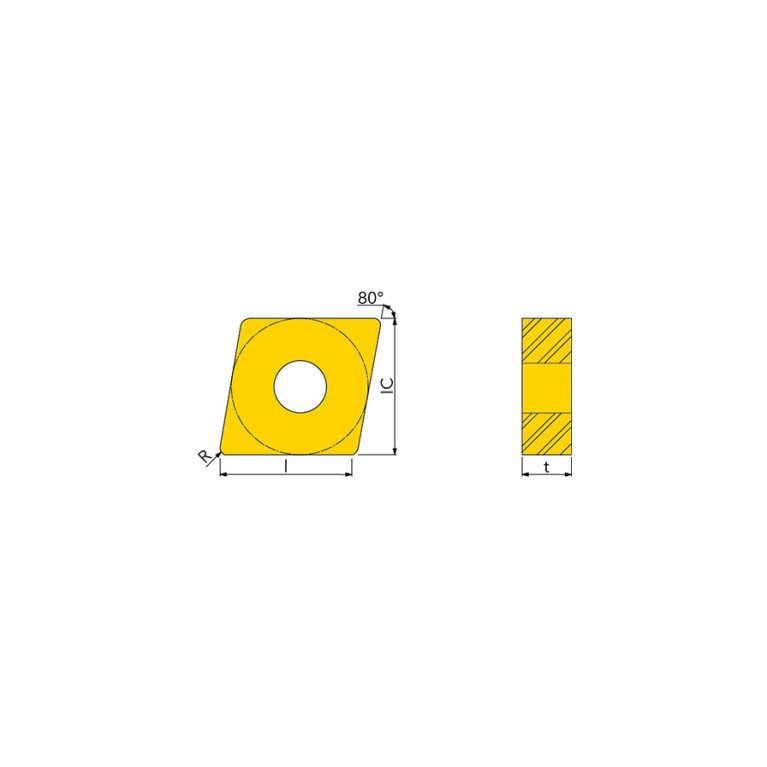

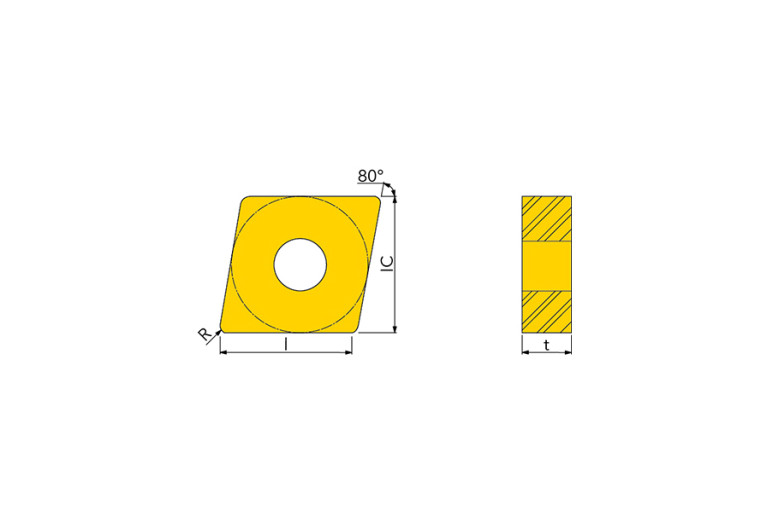

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° rhombic insert for medium roughing / stainless steel

GRD2ND Standard designation of the grade 2nd application

M25-M40

GRD3RD Standard designation of the grade 3rd application

S25-S40

GRDMFG Grade manufacturers designation

TT9235

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5522412

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

14.4 mm

LE Cutting edge effective length

3.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1606162N

MIID Master insert identification

CNMG160616 TT9235

Name Identifying order number

CNMG 160616 EM TT9235

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

CNMG160616

STDDESAnsi Standard designation ANSI

CNMG544

TCINS Tolerance class insert

Working process

No working processes available
