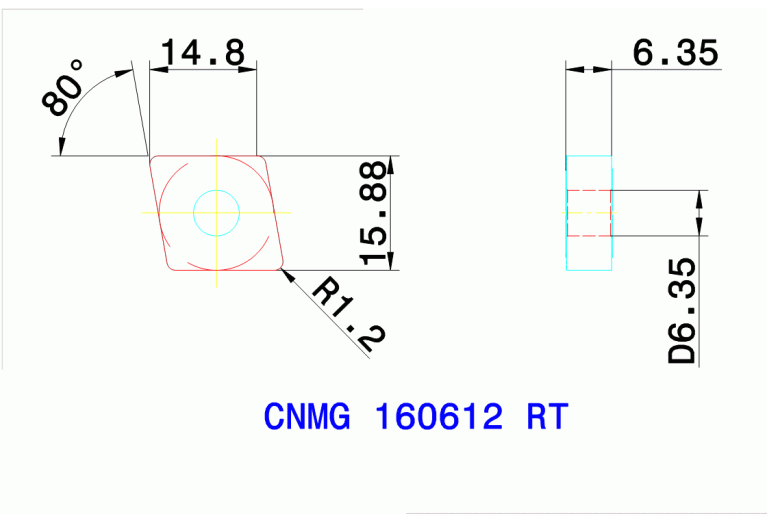

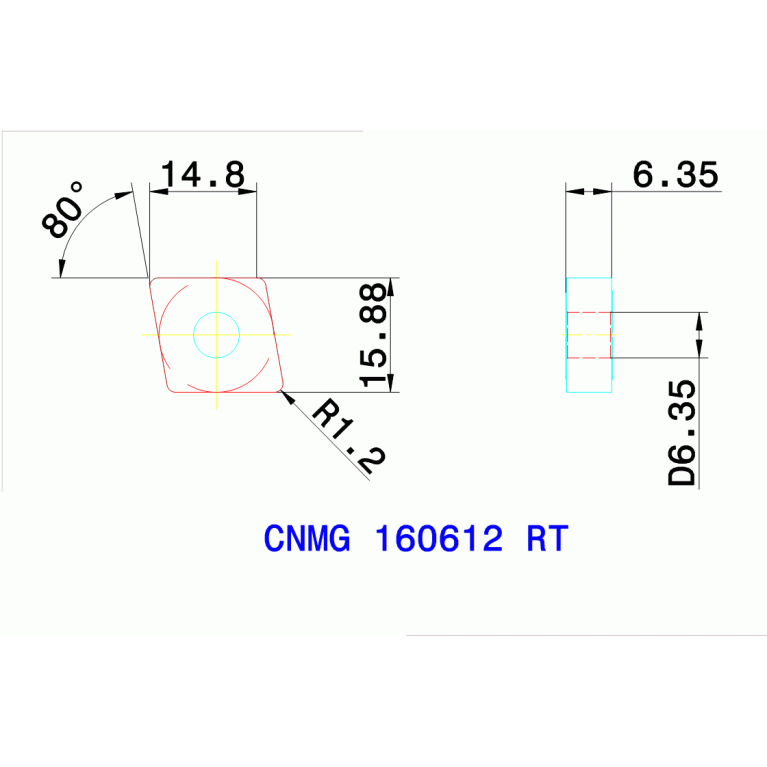

CNMG 160612 RT TT8105

Артикул: 6159027

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

CN1606122N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° rhombic insert for roughing / wide tough rake angle

GRDMFG Grade manufacturers designation

TT8105

GRDPRIO Standard designation of the grade main application

P01-P15

IC Inscribed circle diameter

15.88 mm

ID Technical product number

6159027

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

14.8 mm

LE Cutting edge effective length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1606122N

MIID Master insert identification

CNMG160612 TT8105

Name Identifying order number

CNMG 160612 RT TT8105

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

CNMG160612

STDDESAnsi Standard designation ANSI

CNMG543

TCINS Tolerance class insert

Working process

No working processes available
