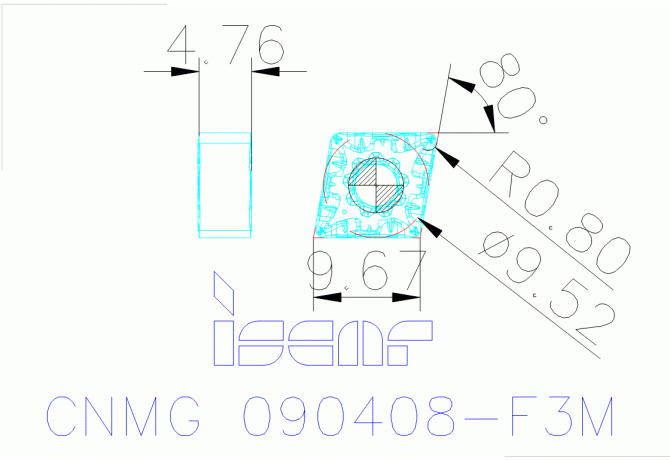

CNMG 090408-F3M IC830

Артикул: 5569092

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

F3M

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

12/30/2017

DIN

CN0904082N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided 80° Rhombic Inserts

GRD2ND Standard designation of the grade 2nd application

HC-S15

GRDMFG Grade manufacturers designation

IC830

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5569092

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.67 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0904082N

Name Identifying order number

CNMG 090408-F3M IC830

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMG090408

STDDESAnsi Standard designation ANSI

CNMG332

TCINS Tolerance class insert

Working process

DDA - External turning
