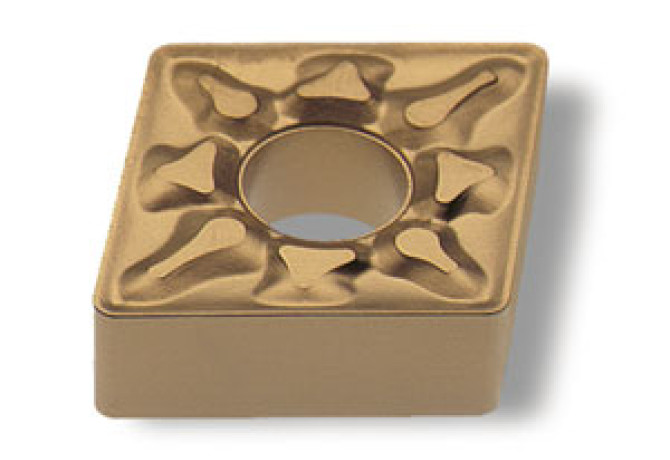

CNMG 090308EN-TM CTCP125

Артикул: 11542025

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

DIN

CN0903082N

EPSR Insert included angle

80 Degree

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRD3RD Standard designation of the grade 3rd application

HC-K30

GRDMFG Grade manufacturers designation

CTCP125

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

11542025

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0903082N

Materials

P,M

Name Identifying order number

CNMG 090308EN-TM CTCP125

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CNMG090308EN

STDDESAnsi Standard designation ANSI

CNMG322EN

TCINS Tolerance class insert

Working process

DDA - External turning
