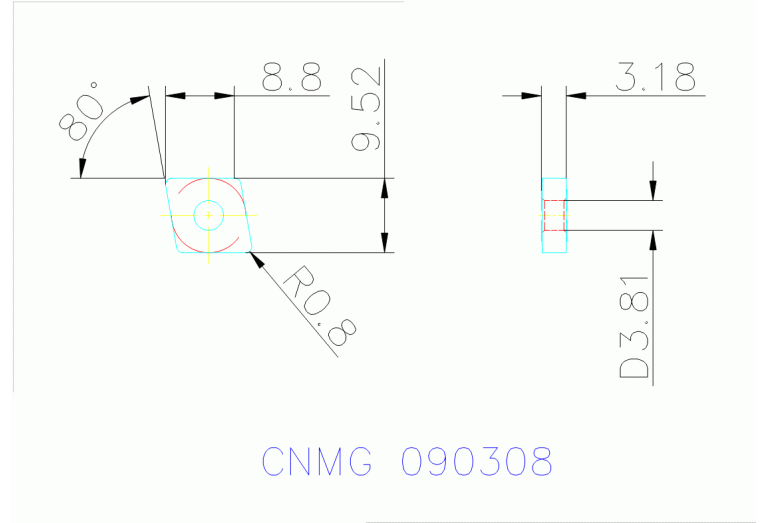

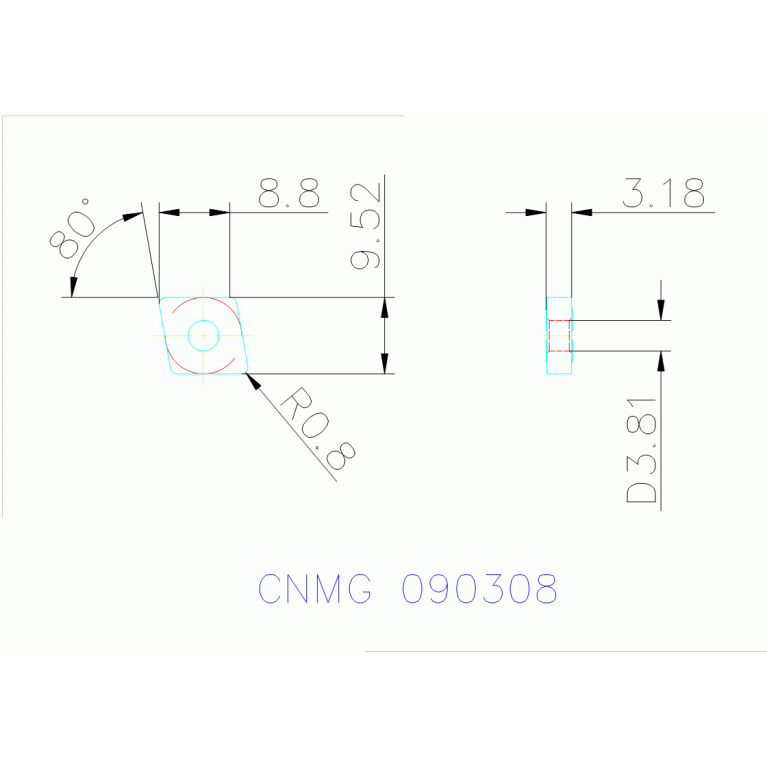

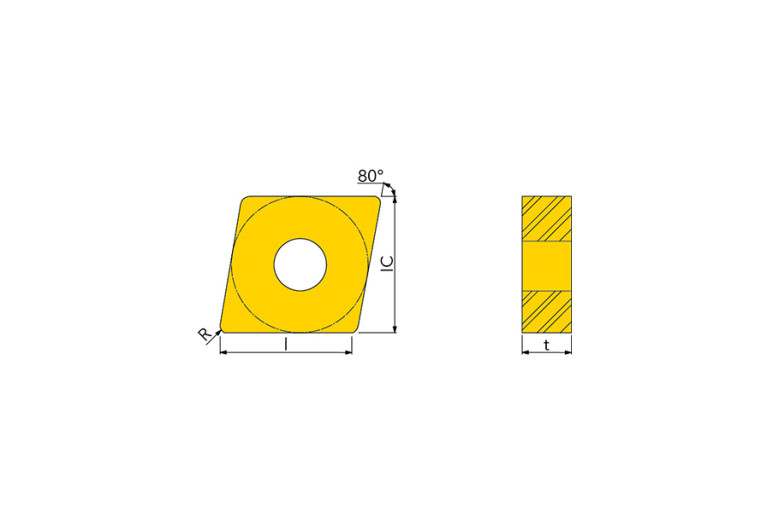

CNMG 090308 TT8115

Артикул: 5518704

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

CN0903082N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° rhombic insert for medium roughing

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5518704

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

8.8 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0903082N

MIID Master insert identification

CNMG090308 TT8115

Name Identifying order number

CNMG 090308 TT8115

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

CNMG090308

STDDESAnsi Standard designation ANSI

CNMG322

TCINS Tolerance class insert

Working process

No working processes available
