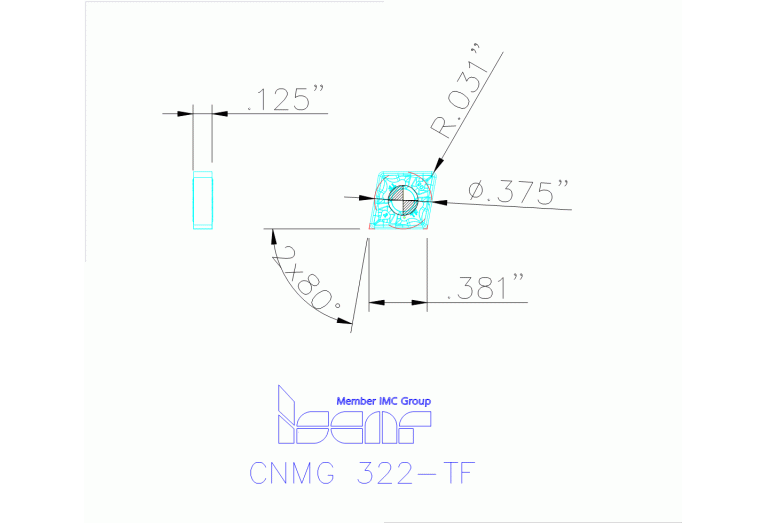

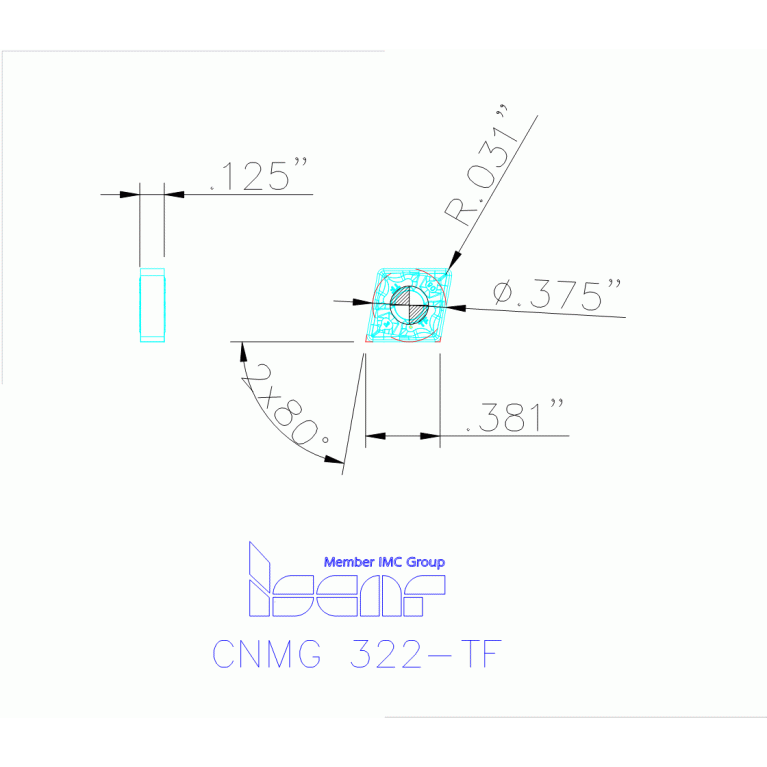

CNMG 090308-TF IC830

Артикул: 3308165

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

CN0903082N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided 80° Rhombic Inserts for Machining a Wide Range of Materials at Medium Cutting Conditions

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

9.52 mm

ID Technical product number

3308165

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$CN0903082NB$$08

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.7 mm

LOC-03 ISO

ISO$CN0903082NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0903082N

Name Identifying order number

CNMG 090308-TF IC830

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

Working process

No working processes available
