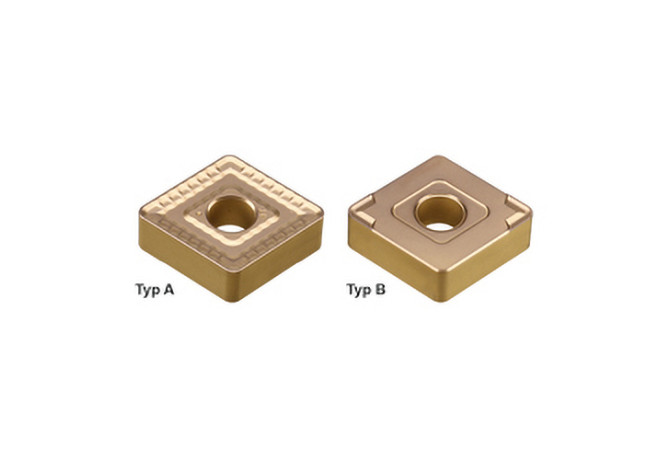

CNMD 250924 HT TT8125

Артикул: 5521333

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

IL-WSP-2926

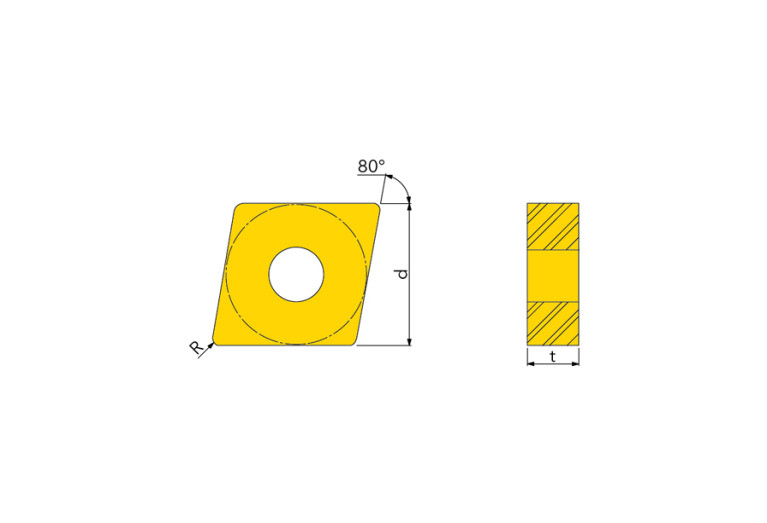

EPSR Insert included angle

80 Degree

FamilyProducts

ISO Negative 80° Rhombic Insert CNMD HT Chipbreaker

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

25.4 mm

ID Technical product number

5521333

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-2926

Name Identifying order number

CNMD 250924 HT TT8125

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

CNMD250924

STDDESAnsi Standard designation ANSI

CNMD866

TCINS Tolerance class insert

Working process

No working processes available
