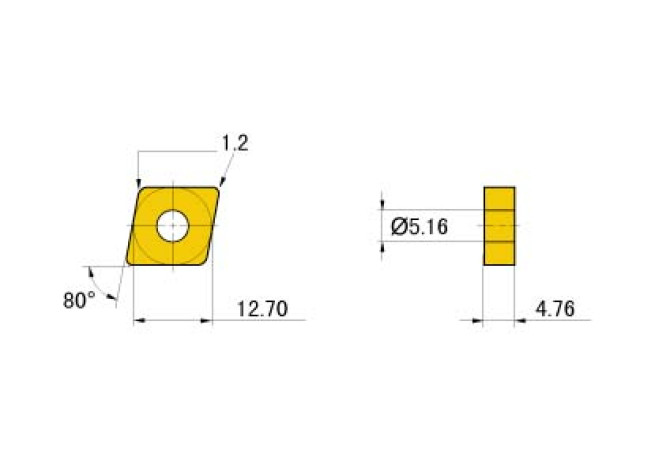

CNMA120412 HTi05T

Артикул: CNMA120412 HTi05T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

CN1204122N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, UNCOATED

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi05T

GRDPRIO Standard designation of the grade main application

HW-K01

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.89 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204122N

Materials

Name Identifying order number

CNMA120412 HTi05T

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMA120412

STDDESAnsi Standard designation ANSI

CNMA433

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning
