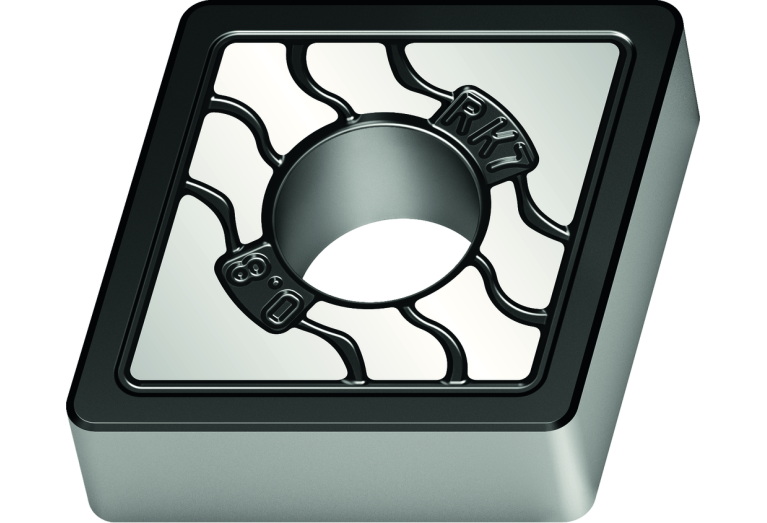

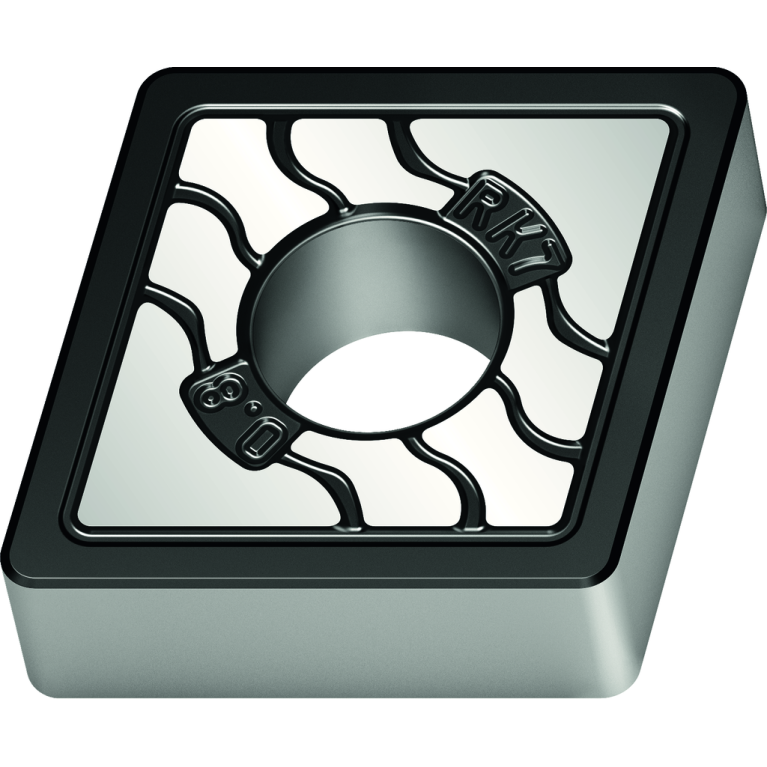

CNMA120408-RK7 WKK20S

CNMA120408-RK7 WKK20S CNMA120408-RK7 WKK20S CNMA120408-RK7 WKK20S

CNMA120408-RK7 WKK20S

Walter
Артикул: 6408501
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
RK7
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
12/1/2023
DIN
CN1204082N

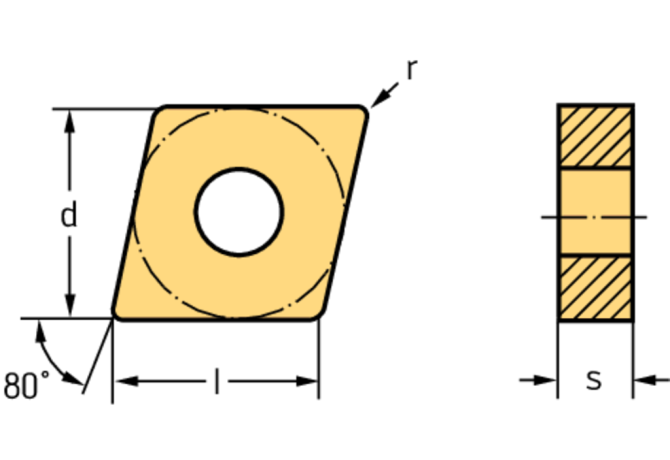

EPSR Insert included angle
80 Degree
FamilyProducts
Negative rhombic 80° CNMA
GRDMFG Grade manufacturers designation
WKK20S
IC Inscribed circle diameter
12.7 mm
ID Technical product number
6408501
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$CN1204082NB$$08
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
12.896 mm
LOC-03 ISO
ISO$CN1204082NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CN1204082N
MIID Master insert identification
CNMA120408 WKK20S
Name Identifying order number
CNMA120408-RK7 WKK20S
NameAnsi Identifying order number inch alternative
CNMA432-RK7 WKK20S
NOI Insert index count
2
RE Corner radius
0.8 mm
S Insert thickness
4.762 mm
S1 Insert thickness total
4.762 mm
STDDES Standard designation
CNMA120408
STDDESAnsi Standard designation ANSI
CNMA432
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.01 kg
