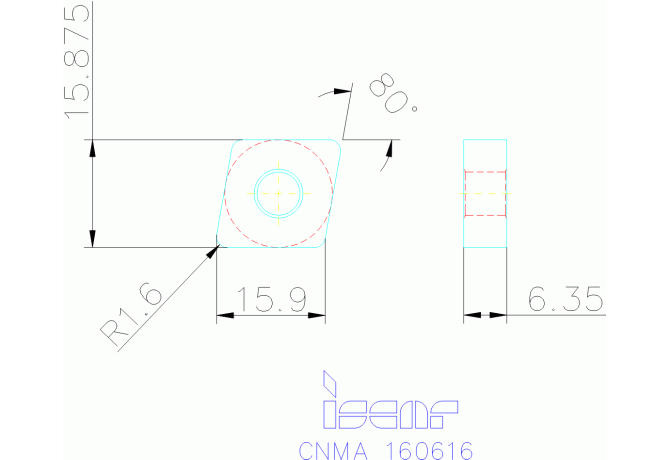

CNMA 160616 IC5010

Артикул: 5508070

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

CN1606162N

EPSR Insert included angle

80 Degree

FamilyProducts

CNMA 160616 IC5010

GRD2ND Standard designation of the grade 2nd application

HC-K05

GRDMFG Grade manufacturers designation

IC5010

GRDPRIO Standard designation of the grade main application

HC-K20

IC Inscribed circle diameter

15.87 mm

ID Technical product number

5508070

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1606162N

Materials

Name Identifying order number

CNMA 160616 IC5010

NameAnsi Identifying order number inch alternative

CNMA 544 IC5010

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

CNMA160616

STDDESAnsi Standard designation ANSI

CNMA 544

TCINS Tolerance class insert

Working process

No working processes available
