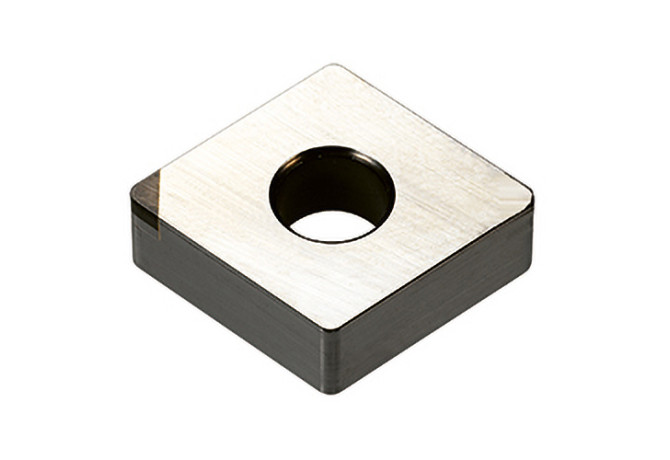

CNMA 120412 LS4 TB730

Артикул: 5403134

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CBN

COMPC Company code

IL - Ingersoll

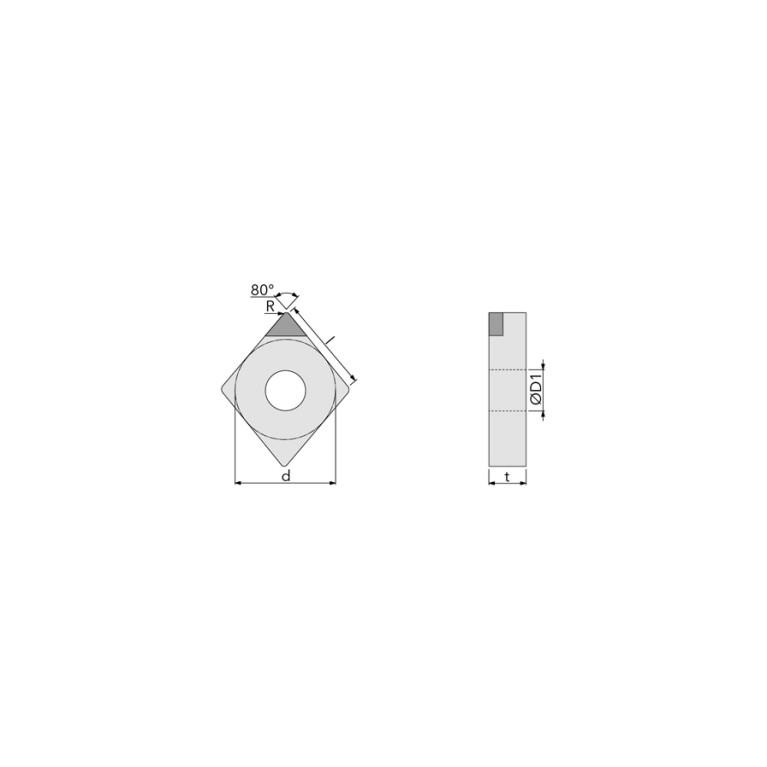

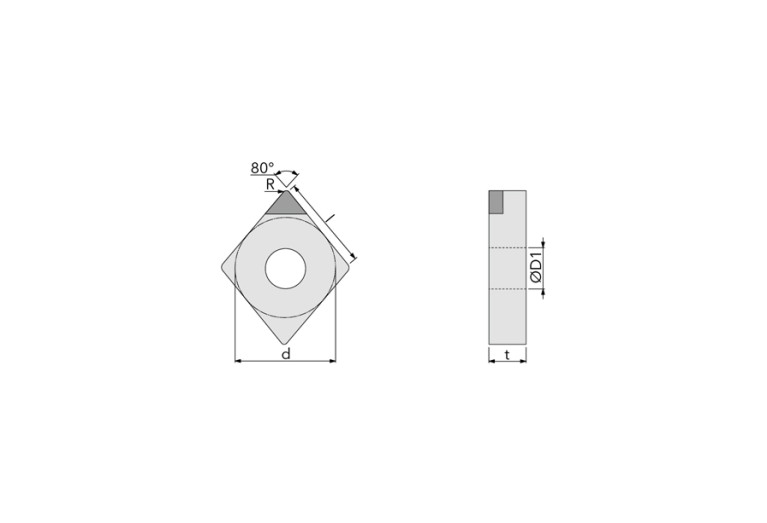

D1 Fixing hole diameter

5.16 mm

Delivery state

NL - Discontinued

DIN

CN1204122N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° CBN Insert for high speed machining

GRD2ND Standard designation of the grade 2nd application

K15-K25

GRDMFG Grade manufacturers designation

TB730

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5403134

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204122N

MIID Master insert identification

CNMA120412 TB730

Name Identifying order number

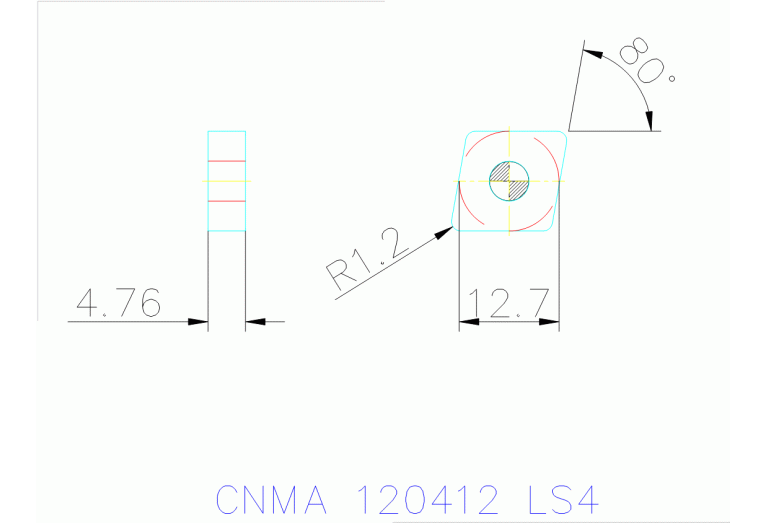

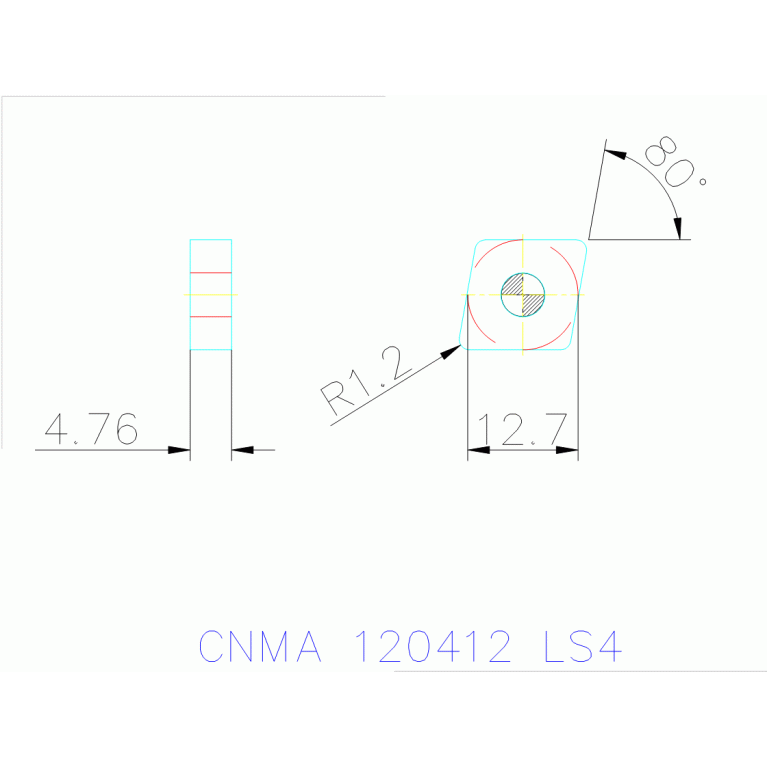

CNMA 120412 LS4 TB730

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNMA120412

STDDESAnsi Standard designation ANSI

CNMA433

TCINS Tolerance class insert

Working process

No working processes available
