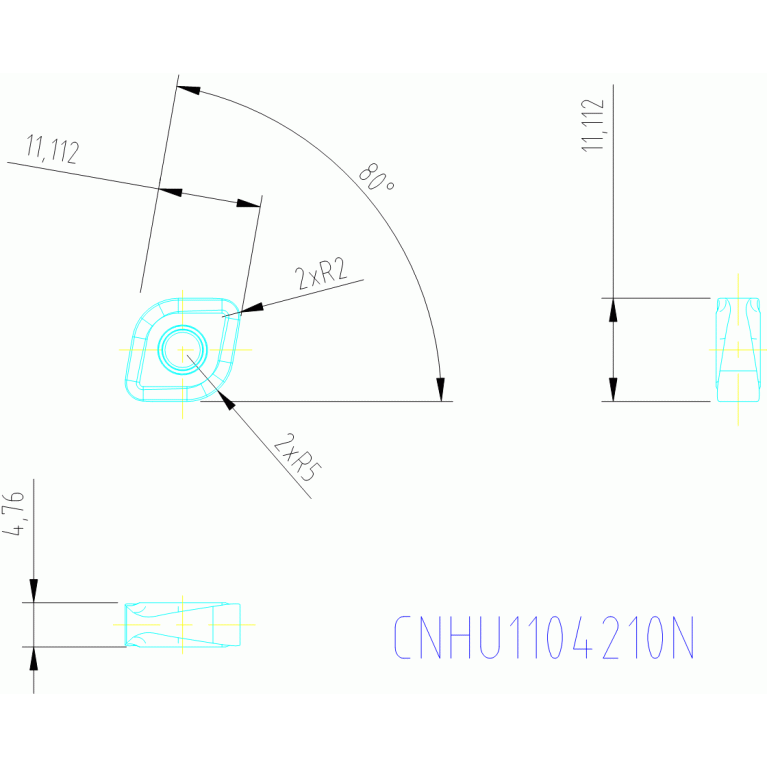

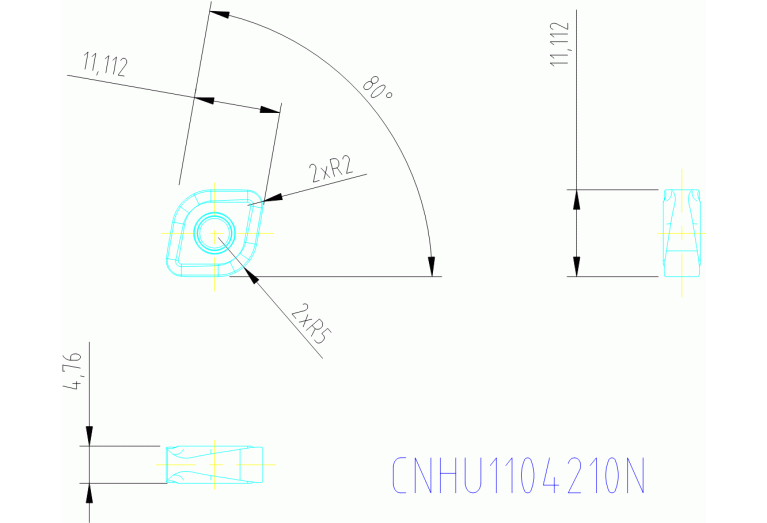

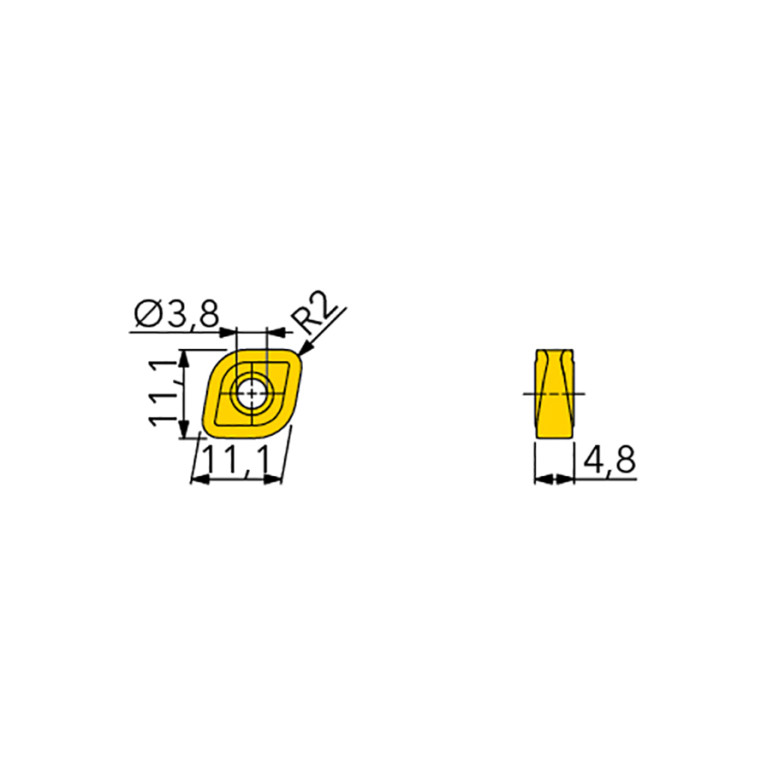

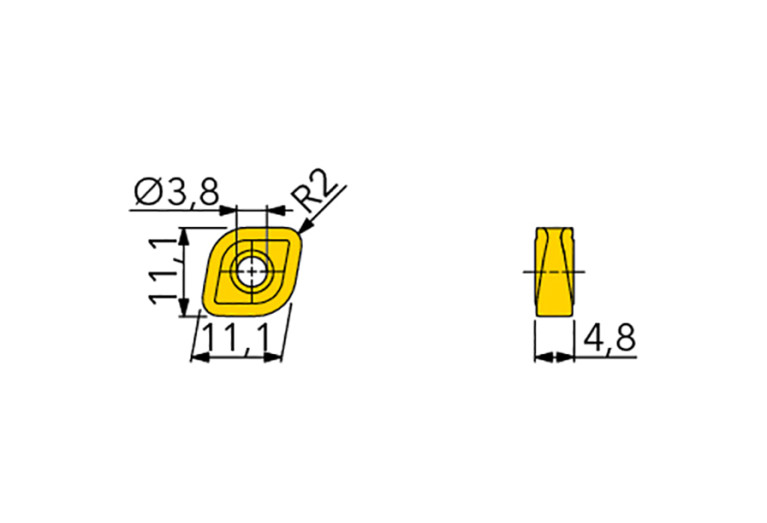

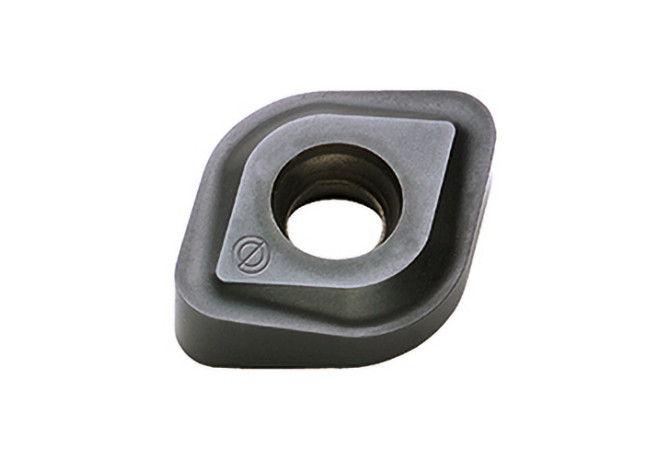

CNHU110420N IN2530

Артикул: 3060771

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

LL - Stock limited

DIN

CN1104 5N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, four-edged, positive geometry with R2,0

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

11.11 mm

ID Technical product number

3060771

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.1 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1104 5N

Name Identifying order number

CNHU110420N IN2530

RE Corner radius

2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

CNHU110420N

STDDESAnsi Standard designation ANSI

CNHU3.535N

TCINS Tolerance class insert

Working process

No working processes available
